One busbar. Built to align.
ARMA’s busbar range is engineered to simplify installs without compromise. One consistent design supports both Single Pole and Three Pole devices, cutting complexity on-site and eliminating the guesswork.
With fork and pin options and 35mm² copper capacity in terminals, ARMA busbars support high-performance installs - and help maintain the clean, uniform finish ARMA is known for.
Busbar Accessories:
ARMA Busbar Terminal | Busbar Protection Cap
BUSBAR SPECIFICATIONS

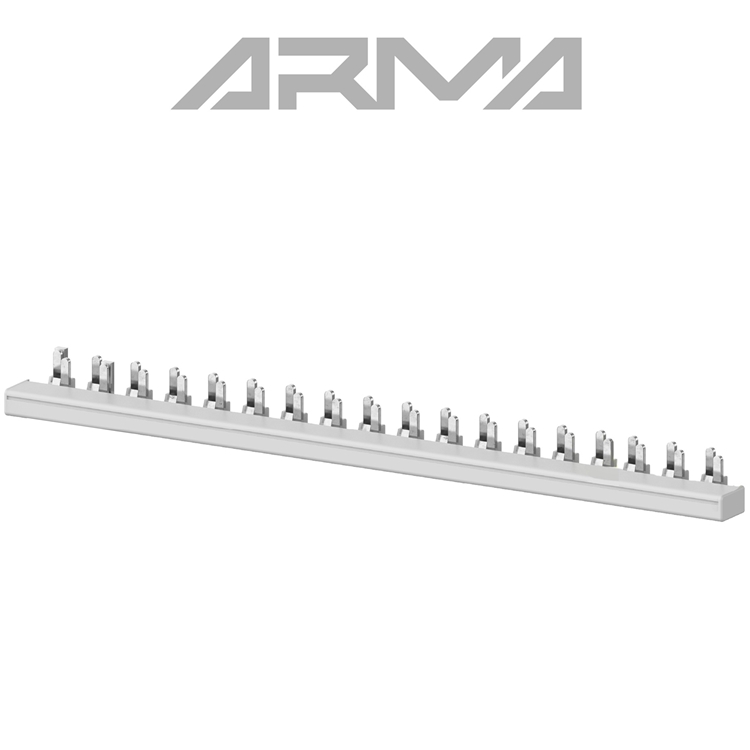

| Type | Pin type bus bar for ARMA Universal RCBO Only |
| Item Codes |
12 way – ARMA.BUS.1.12M 18 way – ARMA.BUS.1.18M |
| Connection | Single Phase supply |
| Rating | 100A |
| Finish type | Tin Plating 10 Micron |
BUSBAR TERMINAL SPECIFICATIONS
| Type | Pin Type Terminal |
| Item Codes | ABT1 |
| Max Cable Size | 35mm² |
| Tightening torque | 2.5Nm |
| Finish type | Tin Plating 10 Micron |
Attachment
Product Data Sheet
