New
V157D
In Stock

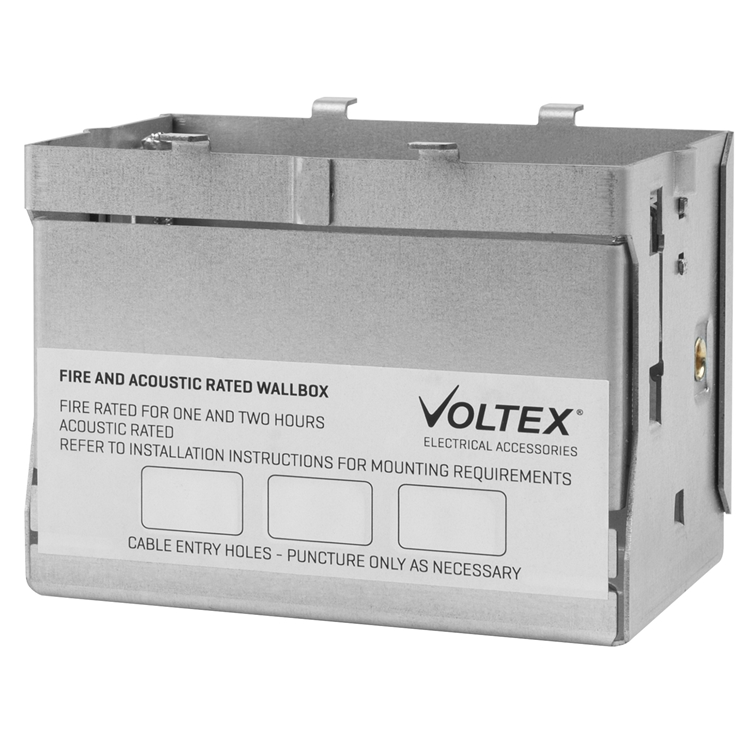

10 PACK - DEEP Fire Rated Wall Boxes complete with Intumescent Pad & Acoustic Seal

 VOLTEX LOGOlifetime warranty

The Voltex Deep Fire Rated Wall Box is designed for mounting switches and outlets in walls that have a specified Fire Rating.

  • Fully compliant to Australian Standards.
  • Tested to 1 and 2 hour Fire Rating in single and back-to-back (Offset) installations.
  • Comes complete with intumescent pads and acoustic seal.
  • Brass earth connector attached to the inside of each box
  • Suitable for ARIA range of outlets and switches

Product Code V157D
Australian Standard AS 1530.4-2014
Fire Rating FRL -/60/60 and -/120/120
Acoustic rating Rw57 * tested in accordance with AS1191-2002 and AS/NZS ISO 717-1.
*Note: Test based on 1 sided wall as per test requirements.
Mounting Centres 84mm (Adjustable Vertically)
Material 0.9mm Galvanised Steel
Dimensions

Internal:

95mm (W) x 56mm (H) x 69mm (D)

External:

98mm (W) x 58mm (H) x 70mm (D)

Cable Entry Holes 3 in top. 2 x Knock outs in the back.
Attachment
Product Data Sheet
Download
Installation Instructions
Download
