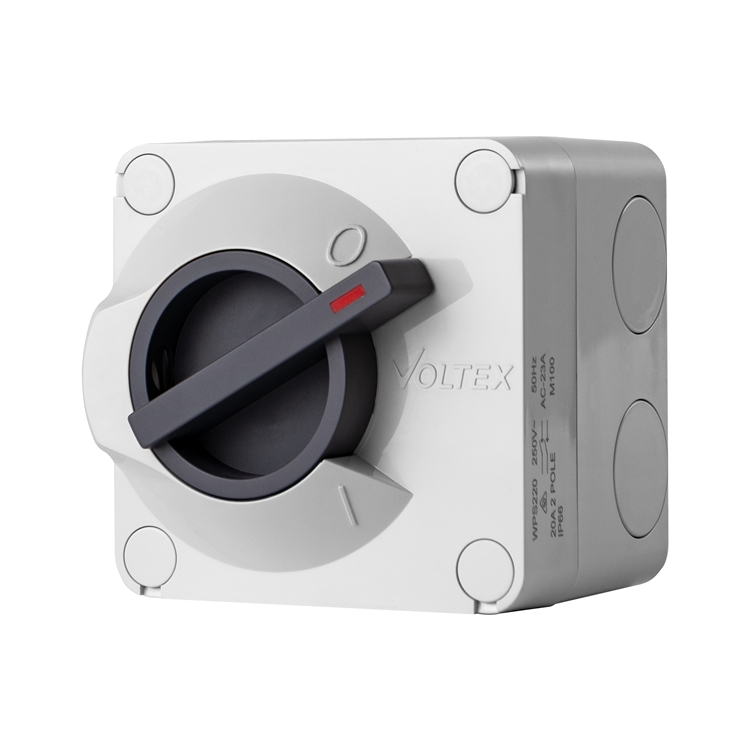

20A AC Double Pole
Compact Isolator Switch
- New ground-up design
- IP66 rated
- Stainless steel cover screws with removable pips
- Supplied with double screw cable connector and mounting hole template
- 20mm and 25mm cable entries
- Pad-lockable in the OFF position
New switch mechanism
The new switch mech includes large terminals with side access tunnels The terminals are suitable for up to 4 x 2.5sqmm cables
20% more internal wiring space
Designed to provide around 20% more internal wiring space compared to the previous version.
| Current Rating | 20A |
| Number of poles | Double |
| Rated Voltage | 250V AC 50Hz |
| IP Rating | IP66 |
| Motor Rating | M100 AC-23A |
| Material | UV Resistant PC |
| Compliance | AS 3133 IEC 60947-3 IEC 60947-1 AS 60529 |
Dimensions:
Attachment
Product Data Sheet
