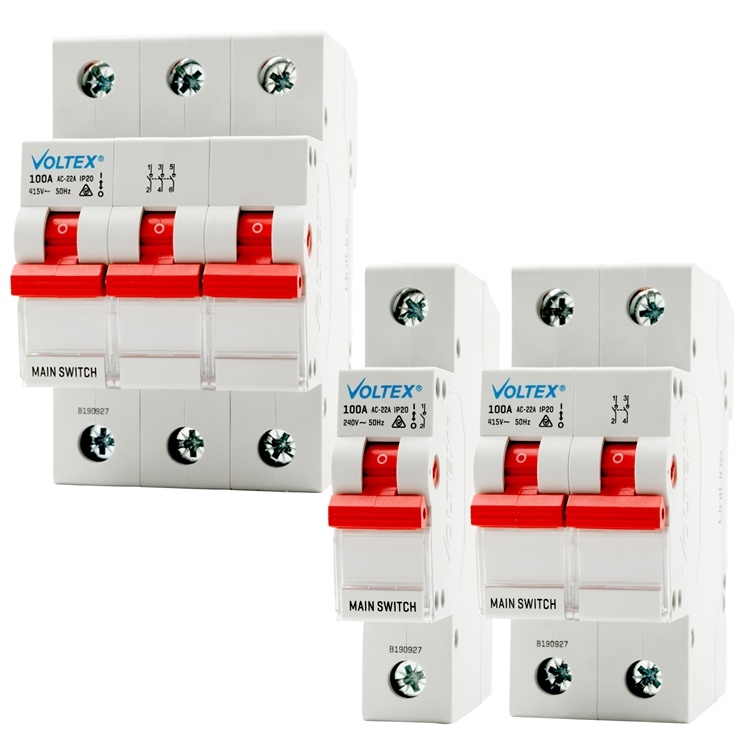

UniLine Main Switch 100A

Inner Carton
Outer Carton

VOLTEX Switchgear lifetime warranty IEC_60947

To be used as a switch isolator in a circuit connection.
In the open position, it complies with the requirements of the isolating function.
New Uniline design, matches the Voltex range of MCB's and RCBO's!

Pole Configuration 1 pole
Rated Voltex 240V Single Phase
Rated Frequency 50/60Hz
Rated Current 100A
Protection Degree IP20
Suitable for AC only
Rated Short Circuit Withstand (Icw) 1500A
Rated Short Circuit Making (Icm) 3000A
General Compatibility Clipsal, Legrand, NHP, and Hager RCDs & MCBs. Clipsal mains switches.


Use "BUS-1U" series Forked Busbar to connect Voltex Main Switch with RCBO with Neutral Lead (RCBO6-1-NL) Series
