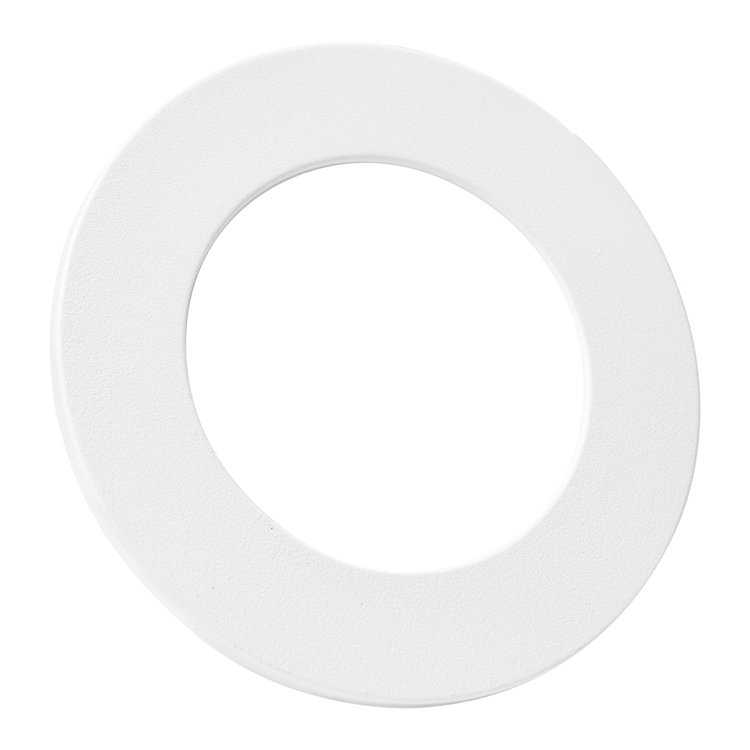

Note: This frame is only suitable for the Slim 9W 10mm downlight (DL9T90-10MM). It is not compatible with 90mm Monaco downlights (IDL9T90-W)(IDL7T90-W)
We recommend that you do not mix 9W 10mm downlights with other models (Monaco, Barcelona, etc) in the same room, as there will be visual differences to the end user. It's best to change out all the lights in this room.
| Power | 9W |
| Input Voltage | 200-240V AC 50Hz Class II |
| Driver |
External - Dimmable [traling edge], SELV, IC classification, Dimensions: 100mm L x 42mm W x 21mm D |
| Classification | IC-4 IC-F (New Zealand) |
| Light Source | LED |
| Light Output Temperatures | Warm White (3000K) Natural White (4000K) Cool White (5000) |
| Ambient Temperature | ta 25°C |
| Lumen Output | 550-650 Lumens |
| Rated Lifespan | 50,000 Hours |
| IP rating | IP20 |
| Building Element and Thermal Insulation Clearance | May abut the luminaire on the sides or cover the rear enclosure (MCI & SCI = Omm) (HCB & SCB = Omm) |
| Minimum distance from lighted objects |  0.1m  |
