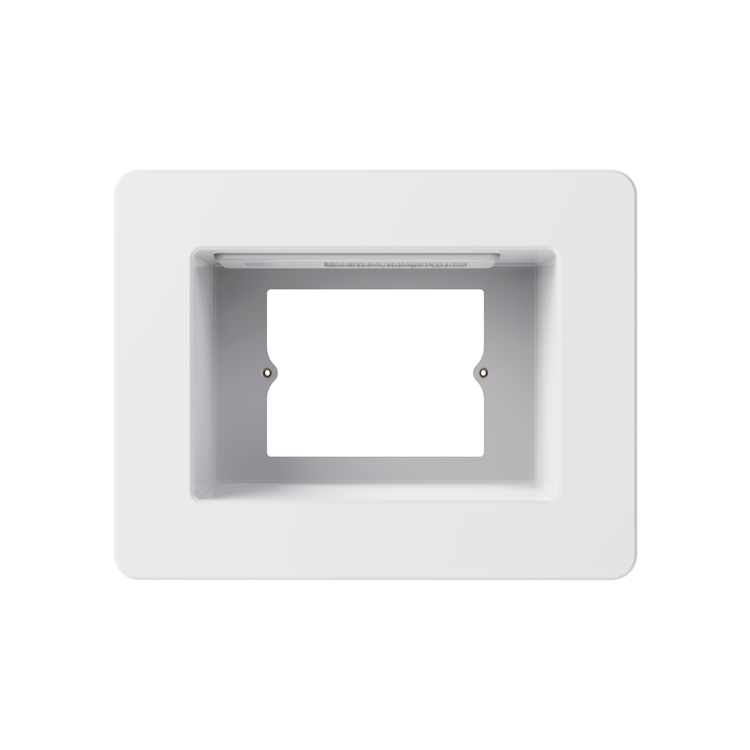

Recessed Wall Box
Seamless Cable Management
- Recessed Design with Single Mechanism and Brush Entry: Facilitates easy cable management and entry.
- Versatile Application: Perfect for new builds and retrofits, allowing flush positioning of devices and cabinets.
- Compact Installation: Under 70mm depth, securely protecting all cables and connections.
- Integrated Mounting Space: Compatible with most switch plates, includes space for 1 wall plate and 1 mechanism with an integrated brush plate.
- Plasterboard Compatible: Easy installation with built-in mounting bracket.
The recessed wall box offers a sleek, low-profile design that keeps outlets and devices neatly tucked away, providing a clean and modern look while saving space.
Will not suit Voltex Shadowline
Front flange Width | 185mm |
Front flange Height |
145mm |
Internal Width | 130mm |
Internal Height | 90mm |
Internal Depth |
60mm |
Cutout dimensions: 162mm x 96mm (gives 1mm interference fit for ribs on all sides).
Flange thickness: 7mm
Plaster thickness: 10mm to 20mm (max)
