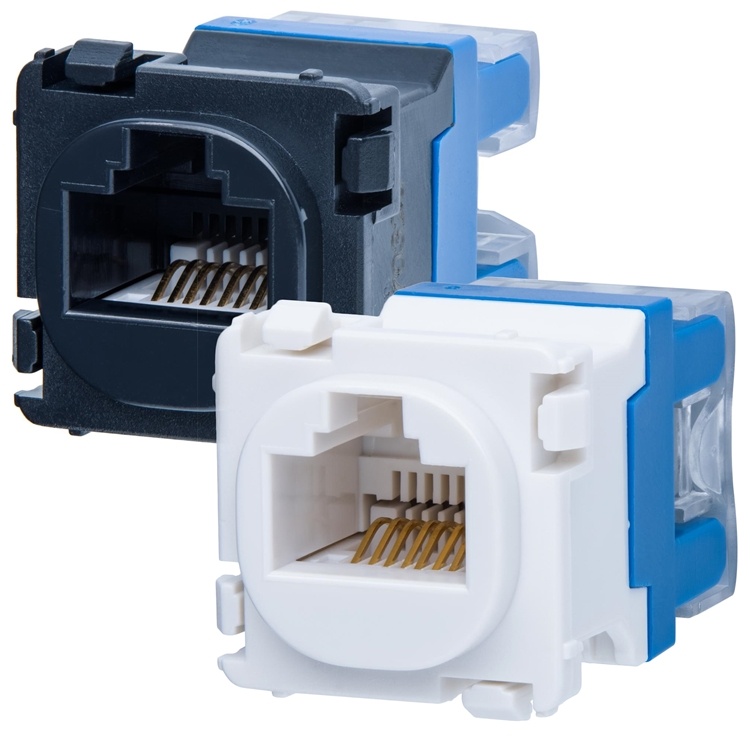

CSMRJ

RJ45 Socket

Inner Carton
units
Outer Carton
units

VOLTEX DataCommslifetime warranty

Used for data connections. Body fits 22mm ø hole. Use this socket to install in a data switch plate or when you need to add an additional phone connection in an existing data socket outlet.

  • Voltex data sockets fit all Australian Standard wall plates.
  • They can be inserted and easily removed for reuse thanks to flexible locking tabs.
  • Comes with a clear wire retaining cap
  • Colour coded at the back for T568A and T568B standards.
  • Tested to AS/CA S008:2010+A1:2014


Dimensions 23mm (W) x 23mm (H) x 55mm (D)
Current Rating 1.5A maximum
Insulation Diameter (Wire) 0.70 - 1.60mm
Temperature Range -40°C to +70°C
Durability 750 insertion cycles minimum
Standards Colour Coded to T568A and T568B standards.
Tested to AS/CA S008:2010+A1:2014
Punch down Tool Type Krone®


Attachment
