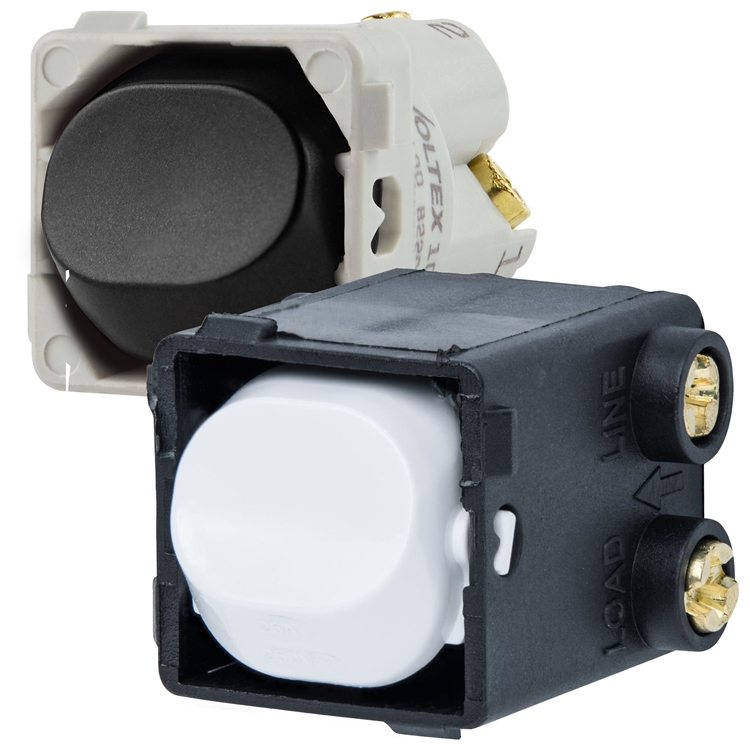

CSMDP

Double Pole Non-Printed Mech

Select Color

Select Current Rating------ Select Color first -----

The Voltex new and improved 10A Double Pole switch is now available!

In a new compact size, which allows installation in more configurations (compared to the previous square-shaped mech style)

Switch Function	1-way
Number of Poles	2
Rated Voltage	250V AC
Rated Current	10A
Terminal Size	Accommodates 4 x 1.5mm² or 2 x 2.5mm² cable
Terminal Bore	4.5mm ø
Motor Rating	M80
Compliance	AS/NZS 3133, AS/NZS 3100
