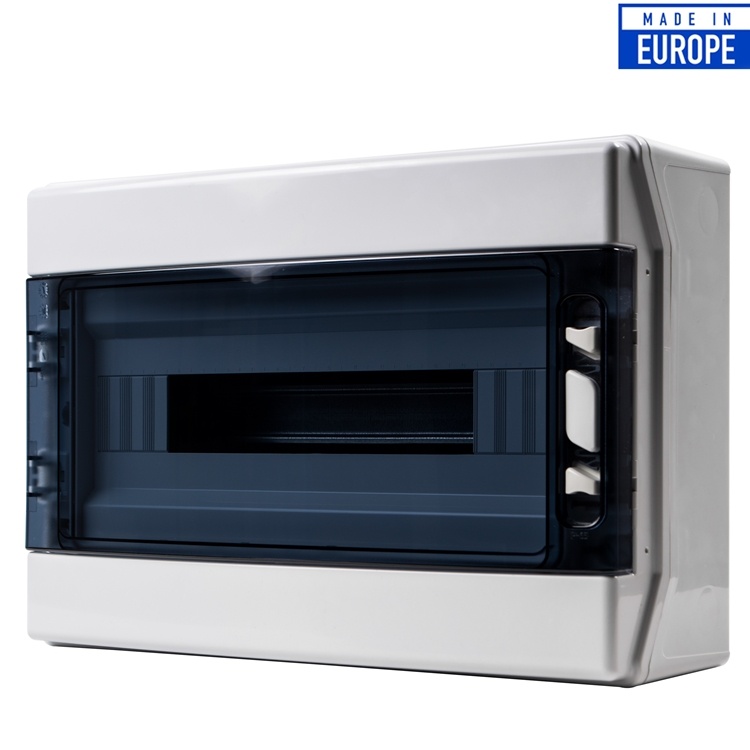

These IP65 distribution boxes are made from halogen free long-lasting thermoplastic material of the highest quality, with excellent UV resistance. They have a large internal space for wiring and modular capacity from 6 up to 36 modules. Designed for internal and external use where a high degree of protection is required.
Overall Dimensions: 418mm (W) x 286mm (H) x 148mm (D)
- Body is made from ABS material
- Protection degree: IP65
- Impact resistance: IK08
- Resistance to glow wire: 650ºC
- Ball pressure test: 70ºC
- Range of temperature under normal conditions: -25ºC / +40ºC
- Maximum operating voltage: 1000VAC / 1500VDC
- Current Rating: 125A
- Class II
Materials (halogen free):
- Case and frame opaque in ABS RAL 7035
- Smoked transparent window in polycarbonate
Case
- Reinforced strip which gives better rigidity
- Double height case which offer more internal space for wiring and fitting switchgear
- Pre-moulded cable entries for M40, M32, M25 & M20
- Case grooves for mounting plates and fixing accessories
- Sealed screws in four points for easy installation
- Removable chassis for models with two or more rows
Window
- Reversible window with horizontal 180º opening
- Smoked transparent window which provides UV protection
- Locking Key accessory available
Degree of Protection | IP65 |
Resistance to impact | IK08 |
Auto-extinguishing degree | HB (UL94) |
Test of resistance to glow wire in the base | 650ºC |
Ball pressure test | 70ºC |
Room temperature range | -25ºC / +40ºC |
Maximum operating voltage | 1000VAC / 1500VDC |
Halogen-free materials | ABS (Acrylonitrile Butadiene Styrene) |
Double insulation | Class II |
Overall Dimensions: 418mm (W) x 286mm (H) x 148mm (D)
