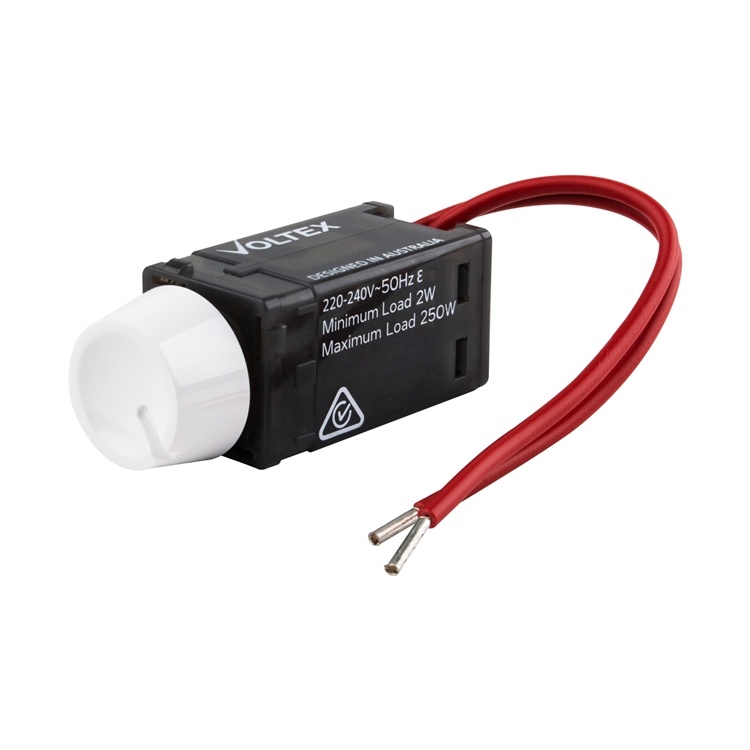

DM250X
In Stock

Trailing Edge Dimmer, Includes White and Black Knob (Externally switched)

DM250x Dimmer
section 1 image 1

The NEW dimmer gives a quick and simple 'wire up and forget' installation. It requires an external switch mech to operate. The blue indicator LED's provide a visual indication that the dimmer is on, it has maximum and minimum dimming positions and provides a smooth experience for the user when dimming up or down.

Externally switched
2-wire dimmer

The dimmer requires an external switch mech to operate. No Neutral connection is required at the dimmer.

section-3-high-low-hard-stops-icon

High and Low hard Stops

The dimmer knob has a physical stop position, so the user knows when they are at minimum and maximum dimming positions.

section-3-smooth-dimming-icon

Smooth Dimming

The dimmer provides a smooth experience for the user when dimming up and down.

section-3-img-1
section-3-no-setup-function-icon

No Setup Functions

Quick and simple 'wire up and forget' installation.

section-3-mechanical-icon

Mechanical adjustment for minimum dimming level

Some LED lights flicker at low dimming levels. A mechanical stop is therefore included to enable a minimum dimming level to be set.

Led Backlight

When the dimmer is on, blue LED's provide a visual indication that the dimmer is on.

section-5-img-1

Supplied with both white and matte black knobs.

Designed in Australia
7 Years Warranty
Technical Specifications:
Operating Voltage 230 Vac 50 Hz
Ambient Temperature Range 0-50° C
Maximum Load 250W
Minimum Load 2W
Switching Requires an extra switch for on/off operation
Compatible loads See table below
Non-compatible loads See table below
Dimmer Protection Thermal Overload protection (conduction angle wind-back)
Over Current (short circuit) protection (resettable)
Over Voltage protection (resettable)
Certified Standards AS/NZS 60669.2.1, CISPR15
Load Compatibility:
Load Type Load Symbol Maximum Load
Dimmable LED downlights / Lamps1 250W
Incandescent / 240V Halogen Lamps 250W
Low Voltage Halogen (Dichroic) Lighting with Electronic Transformers2 250W
Low Voltage Halogen (Dichroic) Lighting with Electronic Transformers2 250W
Dimmable Compact Flourescent Lamps3 150W
Motors / Fans Not Compatible
Non-dimmable Flourescent / Compact Flourescent Lamps Not Compatible
  1. Different brands of dimmable LED lamps/drivers have different dimming capabilities. The DM250X dimmer has been designed to adapt to a wide range of dimmable LED lamps/drivers. However Voltex cannot guarantee compatibility with all LED lamps/drivers marketed as being compatible with trailing edge dimmers.
  2. Compatible with Atco & Clipsal transformers when loaded to at least 75% of their rated output.
  3. Refer to lamp manufacturer's guidelines.
