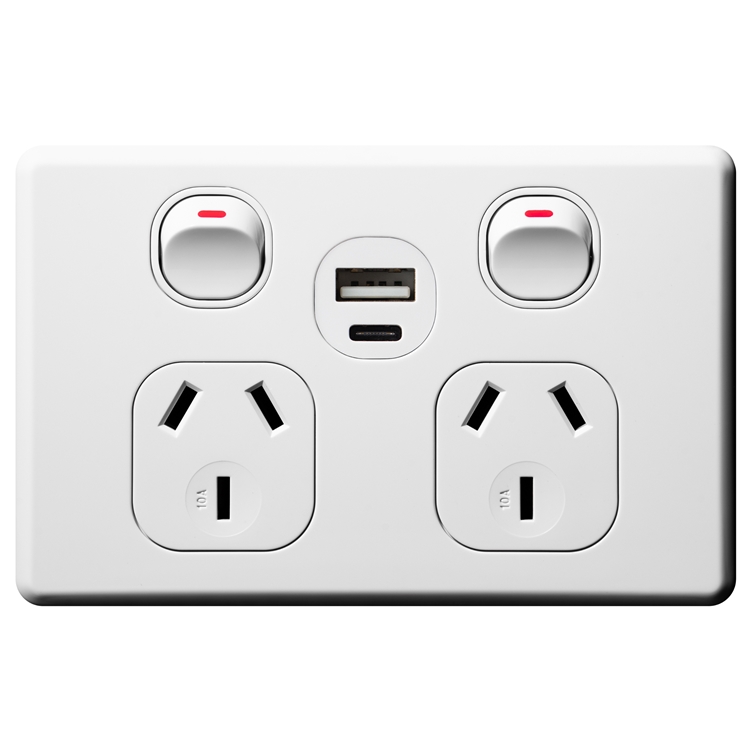

Shadowline Double Power Outlet 250V 10A with A and C-type USB Outlet

Description
Specifications
Download

The new Shadowline USB GPO with fast-charge C-type USB port has arrived!

Featuring adaptable voltage charging, it is perfect for not only fast charging of mobile phones, but iPads and tablets, headphones, bluetooth speakers and more! The C-type port is becoming standard across a number of devices so chosing this product will ensure your customer is set for the future.

Maximum combined output 4.2A @ 5V. Fast charge will not work with two devices plugged in.
Exceeds all relevant Australian & New Zealand Standards
1x C-type port. 5Vdc 3A, 9Vdc 2A, 12Vdc 1.5A
1x A-type port, 5Vdc 2.1A
Standard Gloss Finish.

Mounting Blocks:

Fits 2 x 20mm straight sided mounting block VMB20 (Stack 2 x VMB20 together. Screw back mounting blocks using corner mounting holes)

Note: Does not fit VMB16, VMB34, VMB34S or DIMB mounting blocks. SBC shroud must be used to protect electonics in exposed cavity installations.

The product supports the following fast charge protocols:

Quick Charge 3.0+ / 3.0 / 2.0
USB Power Delivery (PD) 2.0 and 3.0
Xiaomi Charge Turbo 27W protocol
Huawei FCP/SCP/HVSCP protocol
Samsung AFC protocol
Apple 2.4A charging specification
USB BC1.2 DCP

Click here for the Classic Version

Double socket outlet with individual single pole rocker switches - shallow plate

USB Output	1x C-type port. 5Vdc 3A, 9Vdc 2A, 12Vdc 1.5A 1x A-type port, 5Vdc 2.1A
Maximum combined output	4.2A
Mounting Centre	84mm
Plate Thickness	7mm
Recess Depth	40mm
Plate size	115mm (W) x 74mm (H)
Rated Voltage	250V 10AC
Terminals Suit	4 x 2.5mm² cable
Compliance	AS/NZS 3112 with AS/NZS 3100 AS/NZS 61558.2.16 with AS/NZS 61558.1 AS/NZS CISPR 32 (EMC)
