DL9T90-10MM
In Stock

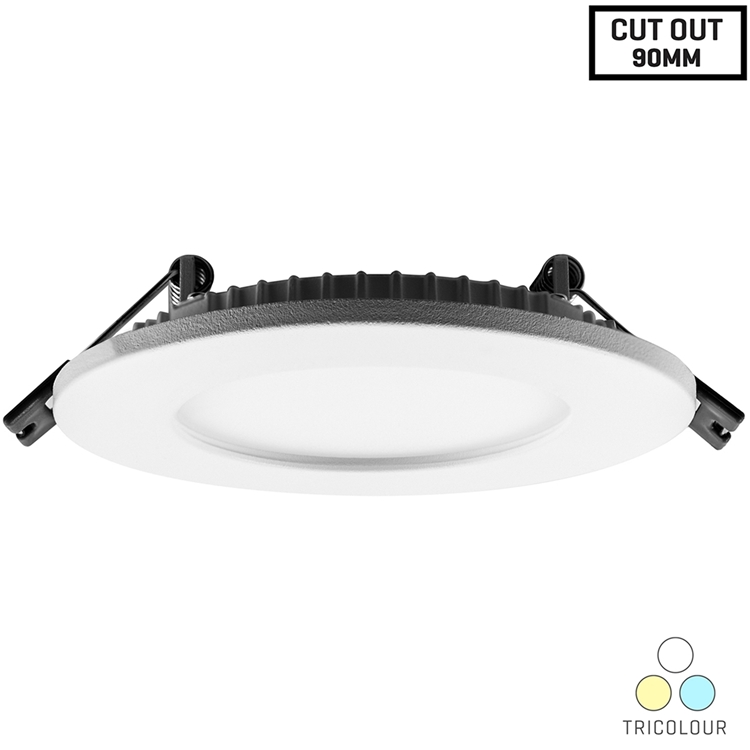

SlimX 10mm Slim 9W 90mm Downlight - Tricolour - Dimmable

DL9T90-10MM_Main
10mm Downlight
Super-slim profile using Edge-Lit technology, so no one can ever see the chips, even if it's dimmed!
7 year warranty Tricolour

Super-Slim

The Voltex 10mm Dimmable downlight is the same thickness as the ceiling plasterboard! If necessary you can detach the spring clips and use the screws provided to attach directly to the offending truss or ceiling timber. They're the perfect choice for renovation work too, often greatly reducing the time spent in deciding the downlight layout in a room.

DL9T90-10MM-Side

It's all about quick, predictable installs that make you more money
and help you offer ideal customer solutions.

DL9T90-10MM-Side

Edge-Lit
Technology

Uses a reflective light guide panel that disperses light through a diffused lens so the LED chip will not be visible.

Technical Measurements

10mm-9W-Diagram
section-five-img-1

Safe Power Delivery

The 10mm Downlight comes supplied with a Dimmable LED driver. The driver's 240Vac connection includes a prewired flex and plug. The DC side of the driver is also prewired and includes a plug and socket connection to the driver, twist locked to ensure a secure connection.

7 Year Warranty

These products are covered by the Voltex 7 year electronic product warranty on parts and labour.

Power 9W
Input Voltage (Driver) 200-240V~ 50Hz (Luminaire is Class III)
Driver (Independent type)

Dimmable [trailing edge], Class II, SELV, IC classification

Dimensions: 100mm L x 42mm W x 21mm D

Classification IC-4
IC-F (New Zealand)
Light Source

LED     CRI >80

Light Colour (Temperature) Warm White (3000K)
Natural White (4000K)
Cool White (5000K)
Ambient Temperature ta 25°C
Lumen Output 550-650 Lumens
Beam Angle 110°
Rated Lifespan 50,000 Hours
IP rating

Driver: IP20

Luminaire: IP44 (Light face); IP4X (Rear enclosure)

Building Element and Thermal Insulation Clearance May abut the luminaire on the sides or cover the rear enclosure
(MCI & SCI = 0mm)
(HCB & SCB = 0mm)
Minimum distance from lighted objects 0.1m

Note: Not suitable for outdoor use near coastal areas

Attachment
Product Data Sheet
Product Installation Instruction
All Voltex Light Fixture IES files (Zip file)
