COMPATIBLE WITH VOLTEX 10YR BATTERY SMOKE ALARM (SAS115BW FROM BATCH B211110 onwards), 240V SMOKE ALARM PRODUCTS FITTED WITH A WIRELESS MODULE (SASWM) DISPLAYING THE REMOTE SYMBOLAND SASMH9VRF
NOTE: All 240V smoke alarms (SAS135MH) need to be fitted with a Wireless Module (SASWM) for full remote compatibility.
SASMH9V (Without- RF) model is not compatible.

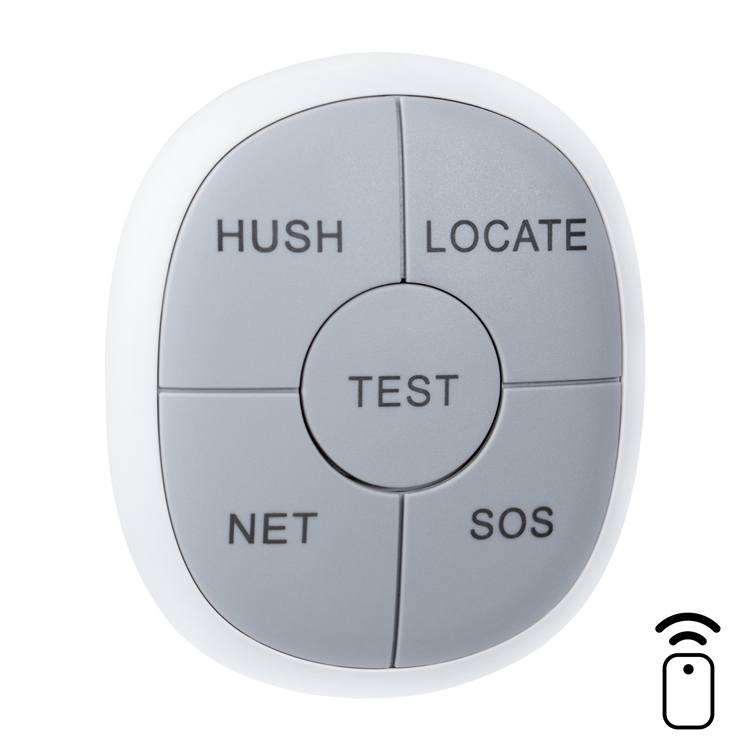

To Pair a Remote: Appoint a smoke alarm "Master" & put it into Pairing Mode. Press the NET button Once on the Remote.
Multiple Remotes can be connected to the same group of smoke alarms. They will need to be each paired to the same master smoke alarm.
(To confirm battery is good, press the 'NET' button once, and the red LED should illuminate steady for 30 seconds)Warning: The Remote contains a lithium button battery. Always ensure the battery cover is tightened securely at all times.
**Note: Transmission distance will vary depending on structural components.
Power | DC 3V (CR2450)- Replaceable |
Connectable with | SAS115BW*; SASWM* (See note below) |
Wireless Frequency | 433.42MHz |
Wireless Distance | >3 meters ** |
Temperature Range | 10~45°C |
Humidity Range | less than or equal 80% RH |
Battery Lifetime | Min 1 year |
Compliance | AS/NZS 4268 |
Standby Current | less than or equal 3uA |
Operation Current | less than or equal 30mA |
Size | 53mm(W) x 62mm(H) x16mm |
* Compatibility Note: This remote is connectable with Voltex Smoke Alarm products displaying the remote symbol.
Each SAS135MH 240V smoke alarm (with a 3V backup battery) needs to be fitted with a Wireless Module (SASWM) for full remote compatibility.
SASMH9VRF 240V smoke alarm (with a 9V backup battery) model is required if connecting for full remote compatibility. SASMH9V is not compatable with remote.
** Note: Transmission distance will vary depending on structural components.
