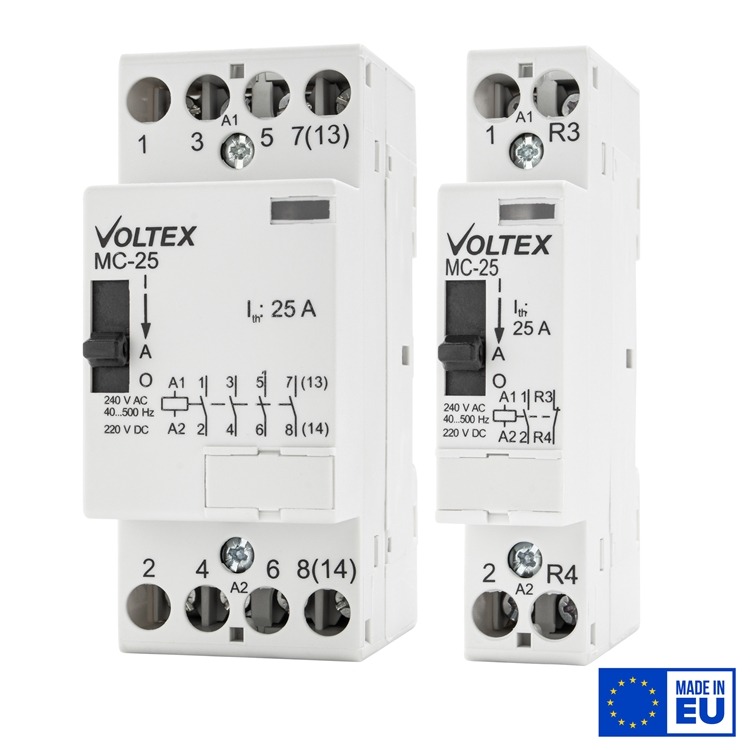

MC-240-R

Modular Contactor 240Vac Coil with manual override (Hum Free)

Select Current Rating

Select Contacts------ Select Current Rating first -----

		MC-25-240-R-1NO1NC	MC-25-240-R-2NO	MC-25-240-R-2NO2NC	MC-25-240-R-4NO
Coil Voltage		240Vac	240Vac	240Vac	240Vac
Maximum Load Current
	AC-1 AC-7a AC-21 AC-22	25A	25A	25A	25A
	AC-3 AC-23 AC-7b	NO 9A, NC 6A	9A	8.5A	8.5A
	AC-2 AC-5a	11A	11A	11A	11A
	LED Lighting	3.8A	3.8A	3.8A	3.8A
Number of Poles		2	2	4	4
N/O Contacts		1	2	2	4
N/C Contacts		1	-	2	-
Manual Override		Yes	Yes	Yes	Yes
Width (DIN Module)		1	1	2	2
Power Dissipation Per Pole		2W	2W	2W	2W
Contact Terminal Capacity		10mm²	10mm²	10mm²	10mm²
Coil Terminal Capacity		2.5mm²	2.5mm²	2.5mm²	2.5mm²
Coil Power Consumption		2W	2W	2W	2W
Suitable for Auxilliary Contact		No	No	Yes	Yes
Hum Free		Yes	Yes	Yes	Yes
Operation Ambient Temperature		-15^oC to +55^oC	-15^oC to +55^oC	-15^oC to +55^oC	-15^oC to +55^oC
Storage Temperature		-40^oC to +80^oC	-40^oC to +80^oC	-40^oC to +80^oC	-40^oC to +80^oC
Maximum Mounted side-by-side		2	2	2	2
Weight		130g	130g	250g	250g
