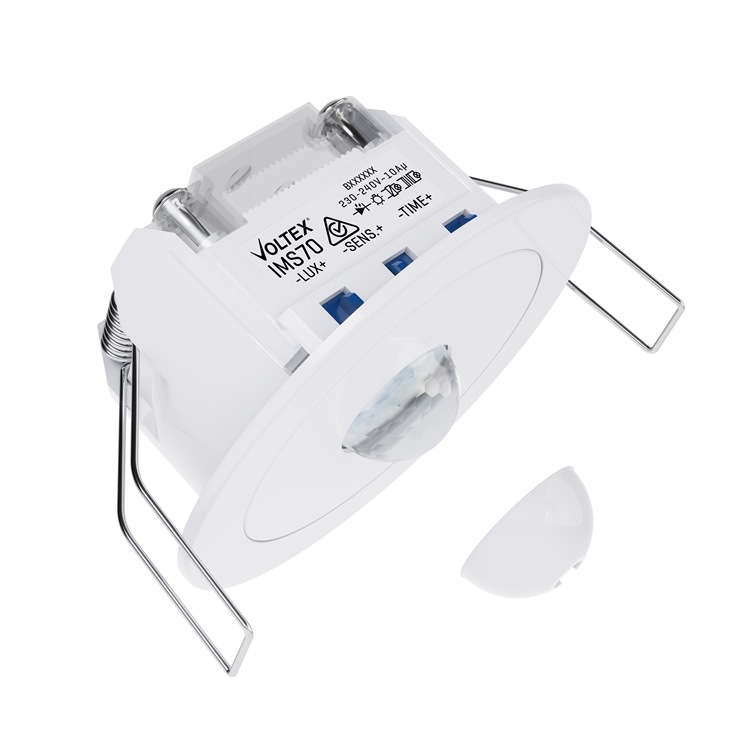

Indoor 360° Motion Sensor 10A 70mm Cut-Out

Description
Specifications
Download

360 Degree Recessed
Indoor Motion Sensor

Detection range 4m radius
Large terminals - Each one suitable for up to 4 x 2.5mm² stranded cable
10A switched output rating
3 position switches for accurate setting of time, lux, and sensitivity setting
Transparent terminal-cover easy inspection of wiring and terminals
Low profile - 41mm above ceiling
Lens mask included
8-hour Manual override
Optional Surface-Mount Kit (sold separately). Part Number IMS70-SMK
Designed in Australia

Large terminals - Each one suitable for up to 4 x 2.5mm² stranded cable

3 position switches
for accurate setting of Time,
Lux and Sensitivity

Transparent terminal-cover easy inspection of wiring and terminals

Lens mask to limit field of view

Sensor type

Passive Infrared (PIR)

Manual Override

Yes, 8-hour override ON (See product installation manual for details)

Connection

Line (Active), Loop, Neutral and Switched 240Vac Output

Supply voltage

230-240V AC 50-60Hz

Terminal Max cable size

Each terminal suitable for 4 x 2.5mm² cables

Minimum load

No minimum load requirement

Standby Power / Current

150mW / 5mA

Load Ratings

LED lighting	2400W
12V Halogen lighting with electronic transformers	2400W
12V Halogen lighting with Iron-Core Transformers	2400W
240V Incandescent and Halogen lighting	2400W
Fluorescent lighting	2400W
Small motor loads	2A (M2 Motor Load Rating)

Cut out Size

70mm-73mm diameter hole

Time Settings

5 / 10 / 15 minutes

Lux Settings

Dark (less than 2 Lux) / Dusk (less than 50 Lux) / Light (more than 50 Lux)

Sensitivity Settings

High / Medium / Low

Recess Depth

41mm from mounting surface

Material

White PC (UV Stabalised)

IP Rating

IP23 from below

Temperature Rating

0°C to 50°C

Detection range (diameter)

Mounting Height	Major Movement*	Minor Movement**
2.4m	>6m	4m
2.7m	>7m	5m
3.0m	>8m	5m

Angular Detection

360° without lens mask, approximately 30° minimum with mask

Conformity

AS 60669.2.1:2020, AS/NZS 60669.1:2020, AS CISPR 15:2017

* Major movement is defined as a person moving 1m across the field of view
** Minor movement is defined as a stationary person bending an arm through 90° at the elbow

Dimensions:
