LD18T160-W
In Stock

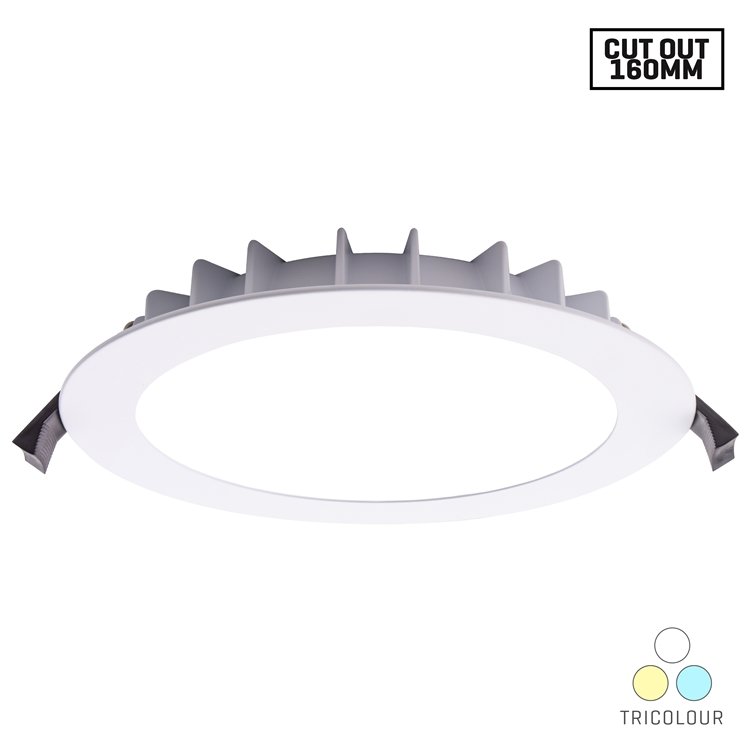

Kempton 18W LED Downlight - CCT Tricolour - White Frame - 160mm cut-out



Voltex Lighting7 years warranty


The Voltex Kempton 18W recessed LED downlight is truly a ‘Fit & Forget’ recessed luminaire!  Highly energy-efficient and cool running for reduced fire risk. It's a sealed unit with no air gap into the ceiling cavity, maintaining the building envelope rating and preventing the loss of conditioned air.

This recessed downlight is guaranteed for a period of 7 years from date of purchase, covering both the LED light engine and the driver.

Perfect for new installations, especially in retail, commercial and hospitality applications. Ideal for retro fitting opportunities, wherever you can replace old halogen downlight 160mm cutout light fittings.



Power 18W
Input Voltage 220-240V~ 50Hz (Luminiare is Class III)
Driver Dimmable [Trailing edge], Class II, SELV, IC classification
Class

IC-4

IC-F (New Zealand)

Light Source LED
Light Colour / Temperature

Warm White (3000K)

Natural White (4000K)

Cool White (5700K)

Luminous Flux (+/- 5%)

1675m (3000K)

1904lm (4000K)

1729lm (5700K)

Ceiling Hole 160mm
Beam Angle 90°
Dimensions 28mm Height x 180mm Outer Diameter (Driver Height: 27mm)
IP Rating

IP54 (Light face)

IP20 (All other parts incl. Driver)

Air Transfer Category Closed
Thermal Insulation Clearance (IC Rating) Side Abutted & Covered
Rated Lifespan 40,000 Hours
Flange Colour White
Connections Includes Driver, Plug & Lead
Standards Complied With

AS/NZS 60598.1, AS/NZS 60598.2.2 Including NZ Amendment A

AS/NZS CISPR 15

Side Clearance to Building Element (SCB)

0mm

Height Clearance to Building Element (HCB) 0mm

Attachment
Product Data Sheet
All Voltex Light Fixture IES files (Zip file)
