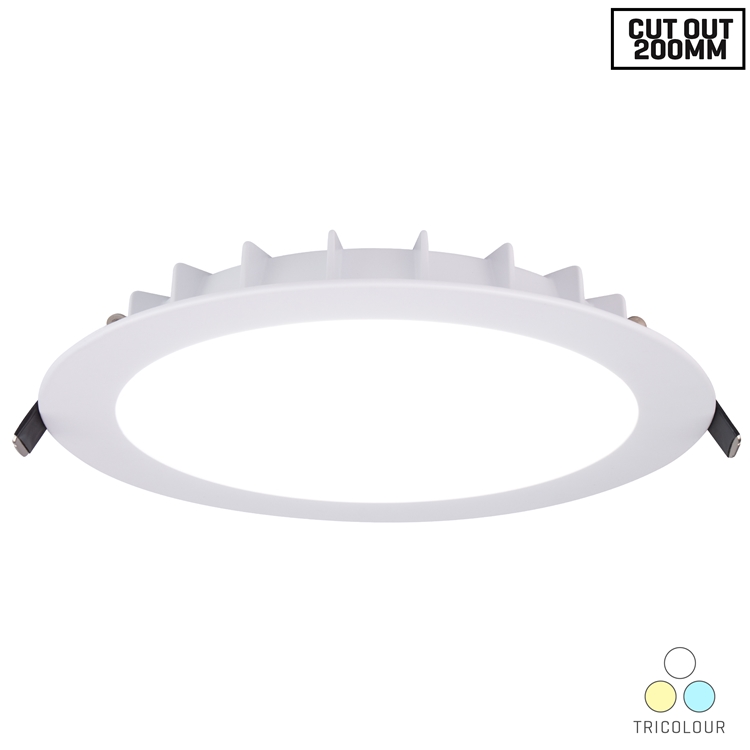

The Voltex Bridport 23W recessed LED downlight is truly a ‘Fit & Forget’ recessed luminaire! It's highly energy efficient, with its 23 watts delivering an amazing 2150 Lumens with a very even light diffusion. Very cool running for reduced fire risk, it is approved for Side Abutted & Covered Thermal Insulation Clearance (IC Rating).
This super slim design has an overall height of only 28mm, and with no air gap into the ceiling cavity there's no change to the building envelope rating (no loss of conditioned air).
The Bridport is fully guaranteed for 7 years from date of purchase, covering both the LED light engine and the driver.
Perfect for new installations, especially in retail, commercial and hospitality applications. Ideal for retro fitting opportunities too, wherever you can replace old halogen downlight 200mm cutout light fittings.
The dimension across the face is 230mm.
Power | 23W |
Input Voltage | 220-240V~ 50Hz (Luminaire is Class III) |
Driver | Dimmable [Trailing Edge], Class II, SELV, IC classification |
Class | IC-4 IC-F (New Zealand) |
Light Source | LED |
Light Colour / Temperature | Warm White (3000K) Natural White (4000K) Cool White (5700K) |
Luminous Flux (+/- 5%) | 2185lm (3000K) 2575lm (4000K) 2250lm (5700K) |
Ceiling Hole | 200mm |
Beam Angle | 90° |
Dimensions | 30mm Height x 230mm Outer Diameter (Driver Height: 28mm) |
IP Rating | IP54 (Light face) IP20 (All other parts incl. Driver) |
Air Transfer Category | Closed |
Thermal Insulation Clearance (IC Rating) | Side Abutted & Covered |
Rated Lifespan | 40,000 Hours |
Flange Colour | White |
Connections | Includes Driver, Plug & Lead |
Standards Complied With< | AS/NZS 60598.1 AS/NZS 60598.2.2 Including NZ Amendment A; AS/NZS CISPR 15 |
Side Clearance to Building Element (SCB) | 0mm |
Height Clearance to Building Element (HCB) | 0mm |
