LD9T90-W
In Stock

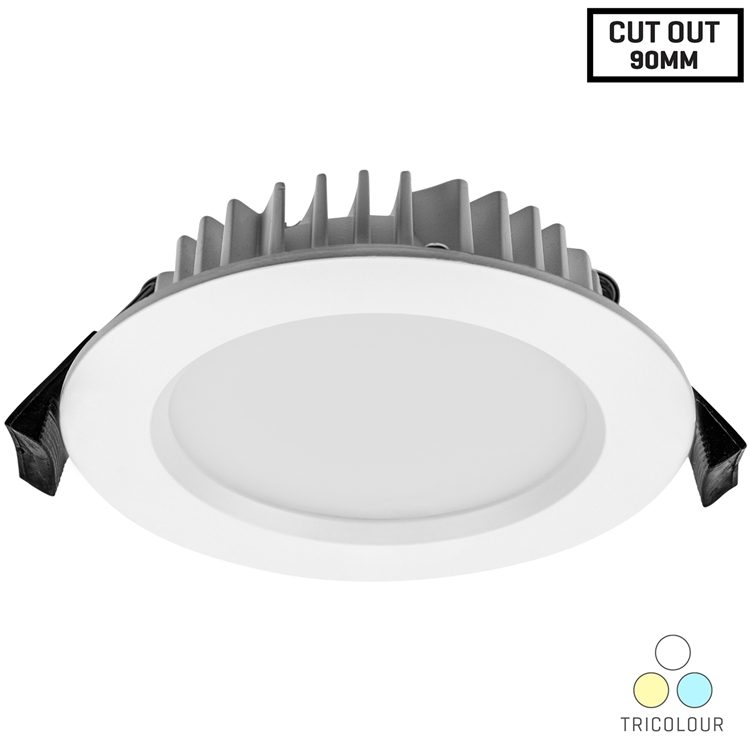

Le Mans 9W LED Downlight - CCT Tricolour- White Frame - 90mm



Voltex Lighting7 years warranty


The dimmable Voltex Le Mans 9watt Tricolour is here! It has a switch on the back of the housing to select between Warm White (3000K), Natural (Neutral) White (4000K) or Cool White (6000K).

  • Very low profile of only 35mm which makes it handy to fit in those tighter spots
  • Has a sleek, rugged aluminium frame.
  • Separate driver is energy-efficient and cool running, and makes installation easier in low clearance installs.
  • Recessed lens face for upmarket look.

The Luminare face is IP54 rated, while the rear & driver is IP20. The Le Mans is a sealed unit with no air gap into the ceiling cavity, preventing the loss of conditioned air.

IC-4 (and IC-F) classification – Insulation may abut the luminiare on the sides or cover the top.

Full warranty on both the LED light and control gear for 7 years from date of purchase.

Adaptor Flanges are available to accomodate retrofitting into larger holes.

Note: The 9W Le Mans downlight dimensions and "look" are identical to the 13W Barcelona, but useful when requiring a lesser light output in smaller areas or bedrooms, etc.

Power 9W
Input Voltage 220-240V AC 50/60Hz
Driver Dimmable - Trailing Edge
Class IC-4 (AU) / IC-F Abutted & Covered (NZ)
Light Source LED
Light Colour / Temperature CCT Tricolour: 3000K; 4000K); 6000K
Luminous Flux 700Lm (3000K); 800Lm (4000K); 750Lm (6000K)
Ceiling Hole 92 - 95mm
Beam Angle 90°
Dimensions 34mm Height (total) x 110mm Outer Diameter (Min. 31mm Ceiling depth required)
IP Rating IP54 (Light face);  IP20 (All other parts incl. Driver)
Air Transfer Category Closed
Thermal Insulation Clearance (IC Rating) Side Abutted & Covered
Rated Lifespan 40,000 Hours
Flange Colour White
Connections Includes Driver, Plug & Lead
Standards Complied With AS/NZS60598.1
AS/NZS60598.2.2 Incl Amendment A,  AS/NZS CISPR 15
Side Clearance to Building Element (SCB)

0mm

Height Clearance to Building Element (HCB) 0mm
Attachment
Product Data Sheet
Product Installation Sheet
All Voltex Light Fixture IES files (Zip file)
