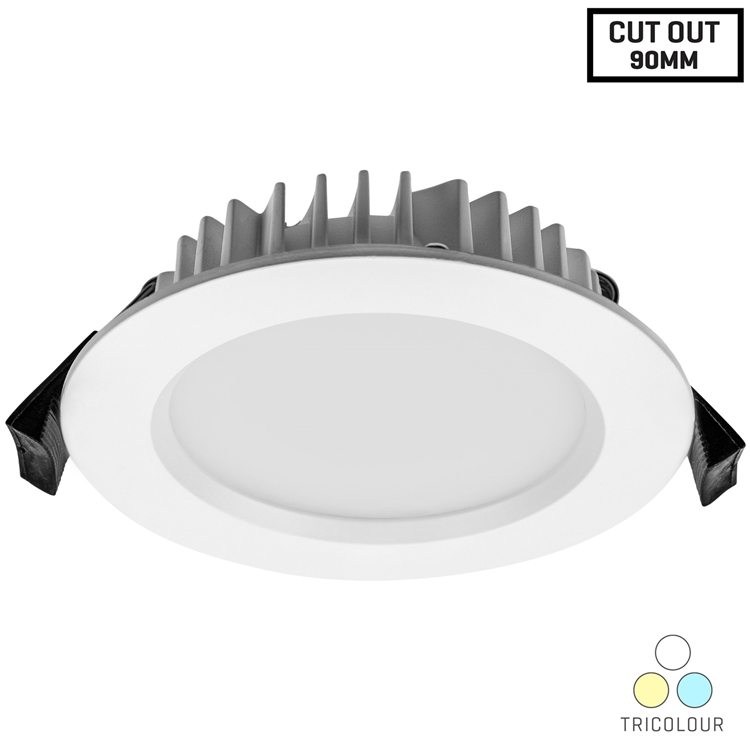

The long awaited Voltex Barcelona Tricolour is here! It now contains a switch on the back of the housing to select between Warm White (3000K), Natural (Neutral) White (4000K) or Cool White (6000K).
It has a sleek, rugged aluminium frame has a very low profile of only 35mm which makes it handy to fit in those tighter spots. The advanced, Dimmable driver is energy-efficient and cool running to eliminate fire risk. The Luminare face is IP54 rated, while the rear & driver is IP20. The Barcelona is a sealed unit with no air gap into the ceiling cavity, preventing the loss of conditioned air.
IC-4 (and IC-F) classification – Insulation may abut the luminiare & driver on the sides or cover the top.
Full warranty on both the LED light and control gear for 7 years from date of purchase.
Also available in Brushed Chrome. Adaptor Flanges are available to accomodate retrofitting into larger holes.
| Power | 13W |
| Input Voltage (Driver) | 200-240V~ 50Hz (Luminiare is Class III) |
| Driver (Independent type) | Dimmable [Trailing Edge], Class II, SELV, IC classification |
| Class (LED & Driver) | IC-4 IC-F (New Zealand) |
| Light Source | LED |
| Light Colour / Temperature | Warm White (3000K) Natural White (4000K) Cool White (5700K) |
| Luminous Flux (+/- 5%) | 950lm (3000K) 1100lm (4000K) 1000lm (5700K) |
| Ceiling Hole | 90 - 95mm |
| Beam Angle | 90° |
| Dimensions | 34mm Height (total) x 110mm Outer Diameter (Min. 31mm Ceiling depth required) |
| IP Rating | IP54 (Light face) IP20 (all other parts incl. Driver) |
| Air Transfer Category | Closed |
| Thermal Insulation Clearance (IC Rating) | Side Abutted & Covered |
| Rated Lifespan | 40,000 Hours |
| Flange Colour | White |
| Connections | Includes Driver, Plug & Lead |
| Standards Complied With |
AS/NZS 60598.1, AS/NZS 60598.2.2 Incl NZ Amendment A AS/NZS CISPR 15 |
| Side Clearance to Building Element (SCB) |
0mm |
| Height Clearance to Building Element (HCB) | 0mm |
