LD13T90-S
In Stock

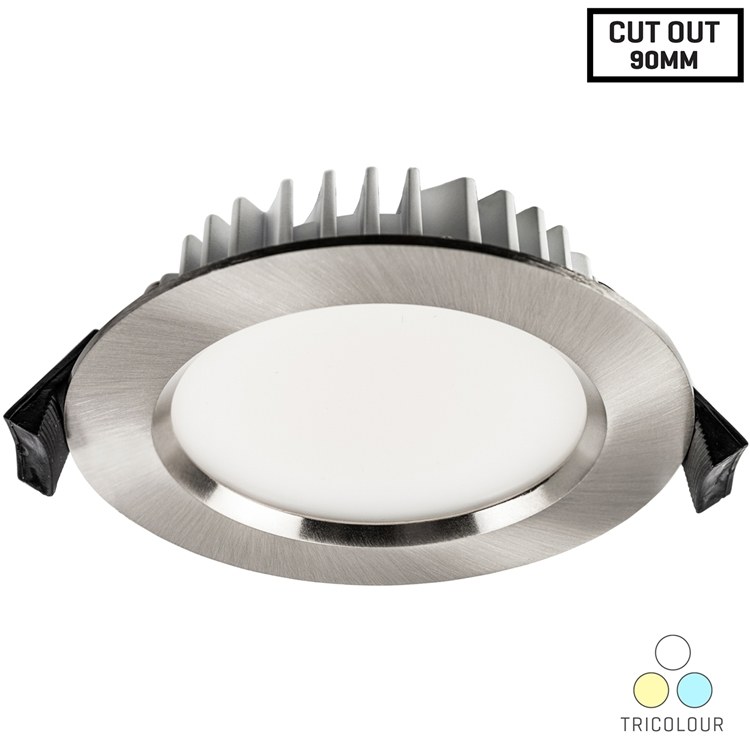

Barcelona 13W LED Downlight - CCT Tricolour - Brushed Silver Frame - 90mm

Voltex Lighting7 years warranty

The long awaited Voltex Barcelona Tricolour in a Brushed Silver finish is here. It now contains a switch on the back of the housing to select between Warm White (3000K), Natural (Neutral) White (4000K) or Cool White (6000K).

It has a sleek, rugged aluminium frame has a very low profile of only 35mm which makes it handy to fit in those tighter spots. The advanced, Dimmable driver is energy-efficient and cool running to eliminate fire risk. The Luminare face is IP54 rated, while the rear & driver is IP20. The Barcelona is a sealed unit with no air gap into the ceiling cavity, preventing the loss of conditioned air.

IC-4 (and IC-F) classification – Insulation may abut the luminiare on the sides or cover the top.

Full warranty on both the LED light and control gear for 7 years from date of purchase.

Also available in White. Adaptor Flanges are available to accomodate retrofitting into larger holes.

Power 13W
Input Voltage 220-240V AC 50/60Hz
Driver Dimmable - Trailing Edge
Class IC-4 (AU) / IC-F Abutted & Covered (NZ)
Light Source LED
Light Colour / Temperature CCT Tricolour: 3000K; 4000K; 6000K
Luminous Flux 900Lm (3000K); 1000Lm (4000K); 1000Lm (6000K)
Ceiling Hole 92 - 95mm
Beam Angle 90°
Dimensions 34mm Height (total) x 110mm Outer Diameter (Min. 31mm Ceiling depth required)
IP Rating IP54 (Light face);
IP20 (All other parts incl. Driver)
Air Transfer Category Closed
Thermal Insulation Clearance (IC Rating) Side Abutted & Covered
Rated Lifespan 40,000 Hours
Flange Colour Brushed Chrome
Connections Includes Driver, Plug & Lead
Standards Complied With AS/NZS60598.1
AS/NZS60598.2.2 Incl Amendment A,  AS/NZS CISPR 15
Side Clearance to Building Element (SCB)

0mm

Height Clearance to Building Element (HCB) 0mm
Attachment
Product Data Sheet
Product Installation Sheet
All Voltex Light Fixture IES files (Zip file)
