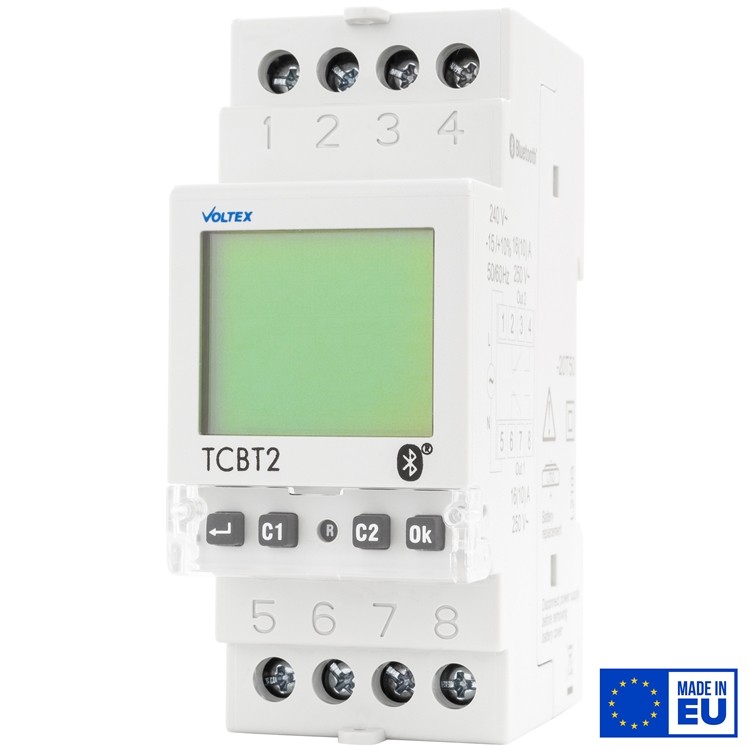

2 Channel DIN rail mounted time clock with Bluetooth

Will Ship on Tuesday - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.
Din Rail
with Bluetooth for an easier and faster way to program.
Wifi Icon


The Voltex TIC APP, available here for Android and for iOS, enables an easy-to-use interface for fast programming, reducing commissioning time significantly.


Create time programs on an iOS or Android phone

Create time programs on an iOS or Android phone

Acquire programs from one-timer
and copy them to another timer (copy/paste)

Relay Output
Manually test relay outputs

Acquire settings (date, time, coordinates) automatically and transfer them to timer

Download the Voltex Tic App from here:
Download on the App Store Get it on Google Play

Backup Battery

The timer includes a replaceable backup battery to maintain the date and time when main power is lost. The battery life is 5 years and is replaced from the back of the timer.

Battery Backup

Programming Options

The timers include a range of programming options:

Daily, weekly or yearly time schedules

Time schedules linked to the inbuilt astronomical clock

ON/OFF and pulse output

Automatic summer/winter time switch over (when required)

Time Programming

Time Programming

Astronomical Programming

Time Programming
7 Year Warranty
Power supply 240Vac 50Hz
Relay capacity 16A @ 240Vac
Loads Incandescent 2000 W
Fluorescent 250 VA
Low voltage halogen 1000 VA
Halogen (240 V) 2000 W
CFL 200 VA
LED 500 VA
Battery life/type 5 years/Lithium CR-2032
Programming resolution 1 minute
Programming 120 programmable events
Daily, Weekly, Sunset/Sunrise programming
Resolution of programming 1 minute
Operating accuracy ± 1 second/day at 25°C
Operating temperature -20 to +50°C
Storage temperature -10 to +70 °C
Operating humidity RH 20 to 90 % non-condensing
Housing 2 DIN modules
Protection degree IP20
Quiescent Power 2W
Terminal size 1 x 4mm² cable maximum
Dimensions 87mm (H) x65mm (D) x35mm (W)
Bluetooth time clock data sheet
Bluetooth time clock installation guide
Connections and Typical Installation
Device Pairing Manual (Android)
Device Pairing Manual (iOS)
