CCS2020
In Stock

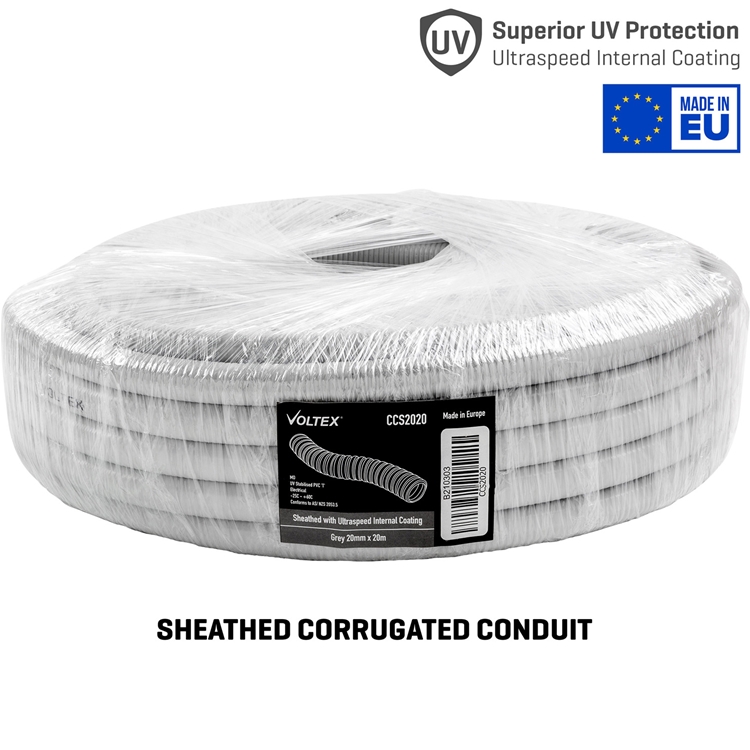

Grey Ultraspeed Sheathed Corrugated Conduit 20mm x 20m

- The external insulating sheath provides additional UV protection to minimise rapid discolouration to ensure your install looks great for many years, even in direct sunlight! The outer sheath is also suitable for electrical installations within concrete.

- Specially formulated Ultraspeed inner coating and carefully designed internal spirals ensure minimal friction to the electrical wires to assist with installation speed.

- Made in Europe

Use Outdoor, high UV exposure areas
Sizes OD 20mm, 25mm
Sizes ID 14.1mm, 18.3mm
Material PVC
SPVC (outer sheath)
Resistance to flame propagation Non-flame propagating
Dielectric Strength Electro-insulating Characteristics
IP Rating IP65
Colour Grey
Resistance to UV Protection against UV radiation with minimal yellowing - 'T' rated
Rating Medium Duty
Temperature Range -25°C to +60°C
Resistance to Compression Minimum 750 N / 5cm
Resistance to Impact Minimum 2 Joule


Compliance

AS/NZS 2053.1
AS/NZS 2053.5
EN 61386-22

Attachment
Sheathed Conduit Product Data Sheet
