PSF36W
In Stock

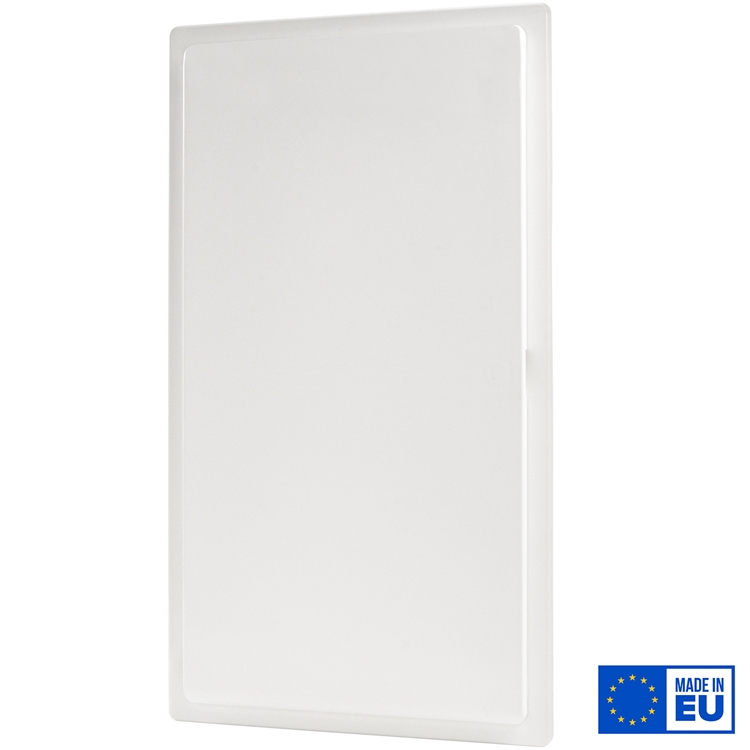

CUBO White Door Flush Mounting Switchboard 36 Way

New
Voltex Logo
CUBO Switchboard Series PSF
IP 40

Introducing the new CUBO switchboard range from Voltex.
Developed to suit the specific requirements of the Australian electrical contractor. These IP40 flush mount boards range from 12 to 36 way and are suitable for both solid and hollow wall installation.

Time is Money

Time is Money

We know your time is valuable, which is why we have completely pre-assembled each board.
The result is a quicker installation, with less plastic packaging to dispose of so you can work more efficiently.

No more using your noggin

The new clamping system gives you the flexibility in positioning the board, eliminating the need to secure to a stud or nogging. No measuring needed. Simply trace around the board, cut, and then fasten the brackets to the back of the plasterboard.

But don't worry, if you prefer to install before sheeting you can still use our stud mounting accessory

Convenience

The Earth and Neutral Bars have been customised based on your feedback. The entry terminals take 35mm2 cable, and the bars offer double screw connection. The screws are captive and wound out from production to save you time. Each bar is configurable to suit a variety of situations.

If you prefer to install before sheeting, use our stud mounting accessory

Note: Installed cover has a 1-2mm clearance from wall surface when installed after fixing.




General

Room temperature range -25 ºC / +40 ºC
Maximum operating voltagea 1000VAC / 1500VDC
Colour and Material
(Front Panel and Door)
ABS White RAL 9003. UV Stabilized.
Colour and Material
(Base)
PS (V0) Grey RAL 7035.
Accessories included Pole fillers, module identification label, spare clamping bracket, and circuit labelling set.
(Busbars, bar protection caps and switchboard lock sold separately)
If you prefer to install before sheeting, use our stud mounting accessory
Protection Plate Depending on the installation location, this board may need to be protected to comply as WSX3 mechanical protection system (Section H 5.4 from AS3000). If so, you can order the relevant plate here.


Enclosure

Compliance AS 62208-2006
Degree of Protection IP40
Resistance to impact IK08
Auto-extinguishing degree V-0 (AS/NZS 60695-11-10)


Compliance AS/NZS 60998.2.1:2012
Rated current 125A
Supply terminals 7.8mm (accepts 35mm2 cable)
Other terminals 5.2mm (accepts 16mm2 cable)
Screw details PH2/Flat screwheads. Clear passivated steel. Rounded ends. Captive in bar. Wound out from production.


Attachment
CUBO Flush Mount Product Data Sheet
CUBO Flush Mount Installation Manual
