*NOT compatible with trailing or leading edge loads, e.g. Voltex LED Downlights.*

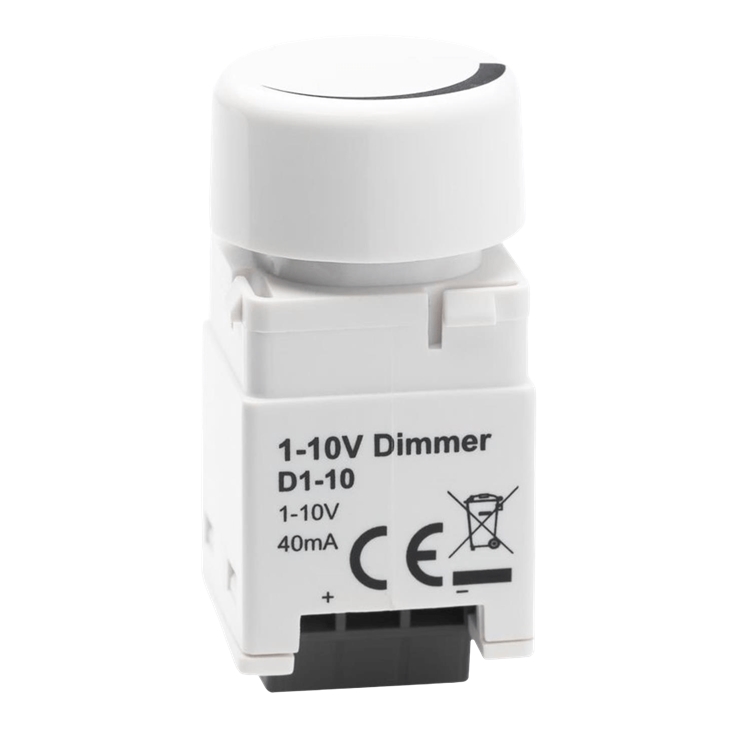

 1-10V dimmer

• For use with Voltex High Bay LED drivers : 1-10Vdc (or 0-10Vdc) control connection
• Allows optimisation of lighting level, and maximises energy saving options.
• Approximate Dimming Range 10-100%
• Can control up to 30 Voltex High Bays, 40mA max control current.
• Minimum brightness setting by hard stop on rear of control knob.
• Dimensions: 23x 23 x 49mm, fits standard switch plate.
• White dimmer knob only

Notes:

• Do NOT connect Mains Voltage to this product!
• This device when connected will help limit inrush/starting current to the driver circuit
• No external power source is required (supply is integral via connected driver/s)
• Connect polarised 2-core control cable to the High Bay driver "dimmer control" wires. (See the wiring diagram for further details).
• Control signal polarity must be matched on all devices: Purple: "+" , Pink or Grey: "-", (daisy chain any additional drivers in parallel)
• This product provides dimming function only, and will not turn the lights off completely.
