360 degree,
16m detection
range

Easy to setup
The setup switches are conveniently located on the side of the sensor, under a simple to remove cover, making them easy to see and adjust when you are up on a ladder

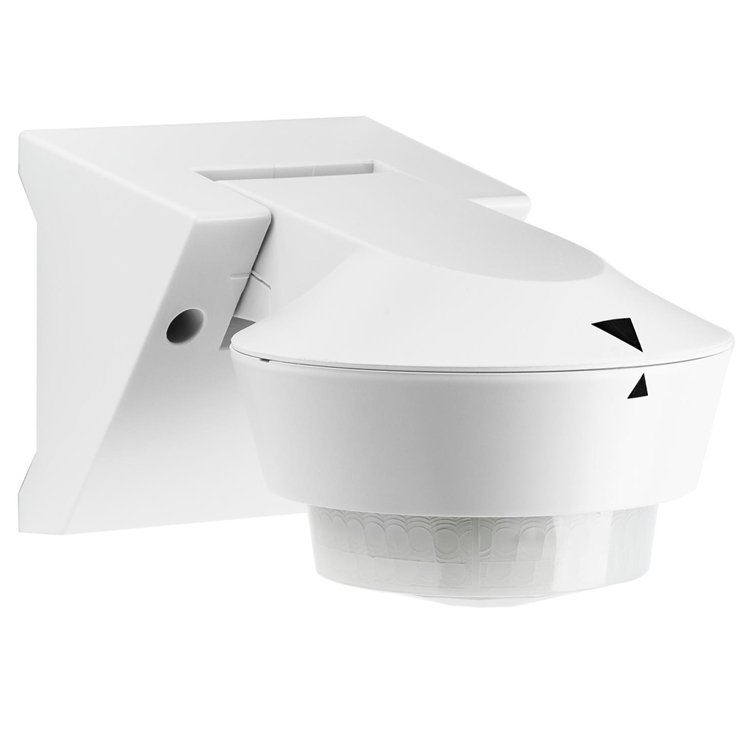

Wall or
under-eave
mounting
The sensor head swivels, making it suitable for mounting on both vertical and horizontal surfaces

Two-part install
First fix – wire and attached the sensor base Second fix - push the sensor head onto the base, then attach with two screws
- 3-wire PIR motion sensor
- IP55 weather resistant design
- 360º detection angle with shields to restrict detection angle
- Up to 16 metre radius detection distance at a height of 2.5m
- For installation on vertical and horizontal surfaces
- Easy installation: mount the base, and simply plug in sensor body
- Rated Switching Capacity: MAXIMUM - Inductive/Fluorescent/LED: 400W, Resistive/Incandescent: 2300W
- A contactor is required for loads exceeding the maximum load rating, or where multiple sensor outputs are connected in parallel.
- Time Delay 5 seconds to 30 minutes
- 3 to 2000 Lux switching adjustment
- Manual Override: Yes - 8 hours on by turning power switch OFF-ON twice (will revert to AUTO at dawn)
- Optional corner mounting bracket
- Operating Temperature: -20 to +40ºC
- Standby Power Consumption: 0.5W
- 7-year warranty
