Click here for mounting bracket and here for daylight sensor mounting bracket
This is cutting edge Innovation in LED High Bay lighting.
Technology now allows the use of multiple LED Chips surface mounted onto one board. This provides for a smaller, lighter designs with powerful light output, and it gives more accurate beam angles, better diffusion, and longer life.
With the new generation LED high bays there is no need of the old fashioned shroud - the light goes exactly where you focus it.
Includes a stainless steel eye bolt for mounting with a ceiling hook or chain.
includes a 90° lens
Reliablity
This Voltex LED High Bay is designed to give long, maintenance-free life through superior temperature management via it's unique construction with large metal fins to draw heat away from the LED chips.
The Voltex LED High Bay is made from high specification components including:
- Philips (Lumileds) LED Chips
- Sosen LED driver, IP65 rated, Dimmable with 1-10V Dimmer
- Stainless Steel screws, bolts and mounting loop
- IK10 rated Polycarbonate Lens
- Aluminium Alloy Body Material
Voltex LED High Bays are covered by the Industry-Leading Voltex 7 year warranty.
NOTE: Not suitable for MARINE applications or in close vicinity to saltwater.
Flexibility
A range of mounting and control options make these LED High Bays very versatile.
- Surface Mounted - adjustable steel bracket for wall or ceiling mount
- Daylight Harvesting Sensor Control
- Bracket for Daylight Harvesting Sensor Control
- 120 degree lens
These mounting and control options offer great advantages in efficiency and cost saving measures, letting you tailor your lighting solutions very accurately, depending on your floor plan, height, and aisle width requirements.

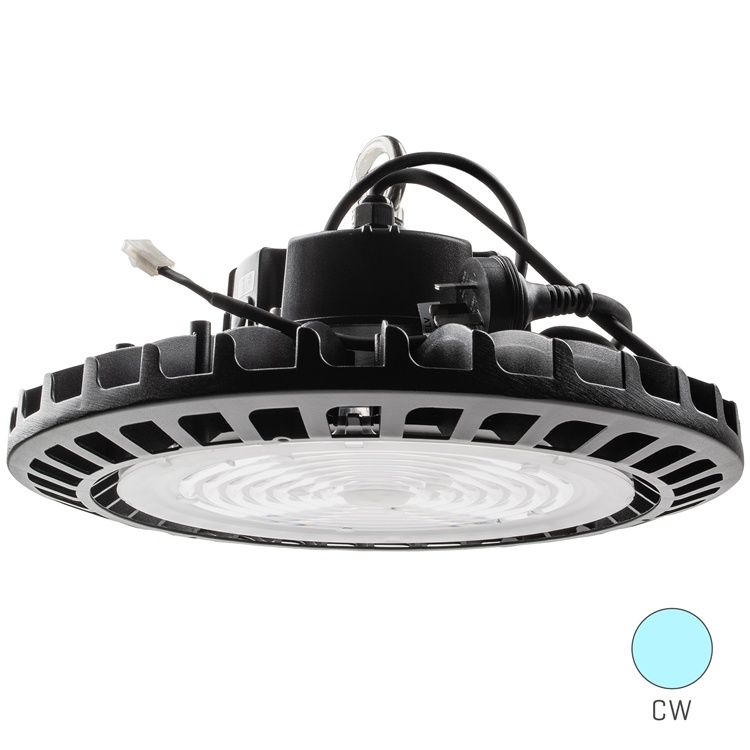

Product Code | HCL-200-CW |
Output | 26,000lm (+/- 5%) |
Power | 200W |
Efficiency | ≥130lm/W |
Light Colour / Temperature | Cool White / 5000K |
CRI | >80 |
Beam Angle | 90° (Optional 120° Lens accessory available) |
Light Source | Philips (Lumileds) LED Chips |
Input Voltage | 220-240V AC 50/60Hz |
IP Rating | IP65 |
Driver | Sosen IP65, Dimmable (1-10V Dimmer) Purple: "+" |
HID Equivalent | 700W |
Overall Dimensions | 340mm (W) x 189mm (H) |
Weight | 3.7Kg |
Connections | Includes Plug & Lead (1.75m) |
Rated Lifespan | 50,000 Hours |
Body Material | Aluminium Alloy |
Operating Temperature | -30°C~+50°C |
Warranty | 7 Year Replacement Warranty |
