HCL-100-CW
In Stock

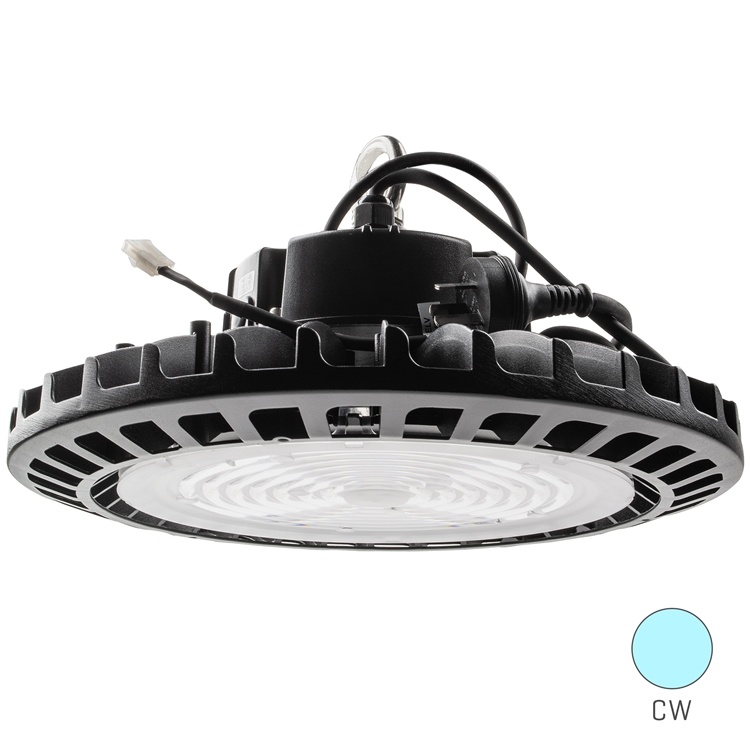

100W LED High Bay Light - Cool White - with 120° lens

Voltex Lighting7 years warranty

7 years warranty7 years warranty

Click here for mounting bracket and here for daylight sensor mounting bracket

This is cutting edge Innovation in LED High Bay lighting.

Technology now allows the use of multiple LED Chips surface mounted onto one board. This provides for a smaller, lighter designs with powerful light output, and it gives more accurate beam angles, better diffusion, and longer life.

With the new generation LED high bays there is no need of the old fashioned shroud - the light goes exactly where you focus it.

Includes a stainless steel eye bolt for mounting with a ceiling hook or chain.

includes a 120° lens

Reliability

This Voltex LED High Bay is designed to give long, maintenance-free life through superior temperature management via it's unique construction with large metal fins to draw heat away from the LED chips.

The Voltex LED High Bay is made from high specification components including:

  • Philips LED Chips
  • Sosen LED driver, IP65 rated, Dimmable with 1-10V Dimmer
  • Stainless Steel screws, bolts and mounting loop
  • IK10 rated Polycarbonate Lens
  • Aluminium Alloy Body Material

Voltex LED High Bays are covered by the Industry-Leading Voltex 7 year warranty.

NOTE: Not suitable for MARINE applications or in close vicinity to saltwater.

Flexibility

A range of mounting and control options make these LED High Bays very versatile.

These mounting and control options offer great advantages in efficiency and cost saving measures, letting you tailor your lighting solutions very accurately, depending on your floor plan, height, and aisle width requirements.

Product Code HCL-100-CW
Output 13,000lm (+/- 5%)
Power 100W
Efficiency ≥130lm/W
Light Colour / Temperature Cool White / 5000K
CRI >80
Beam Angle 120° (optional 90° Lens accessory available)
Light Source Philips(Lumileds) LED Chips
Input Voltage 220-240V AC 50/60Hz
IP Rating IP65
Driver Sosen IP65 Dimmable (1-10V Dimmer) Purple: "+"
HID Equivalent 250W
Overall Dimensions 340mm (W) x 172mm (H)
Weight 3.3Kg
Connections Includes Plug & Lead (1.75m)
Rated Lifespan 50,000 Hours
Body Material Aluminium Alloy
Operating Temperature -30°C~+50°C
Warranty 7 Year Replacement Warranty
Attachment
Product Data Sheet
Product Instruction Sheet
All Voltex Light Fixture IES files (Zip file)
