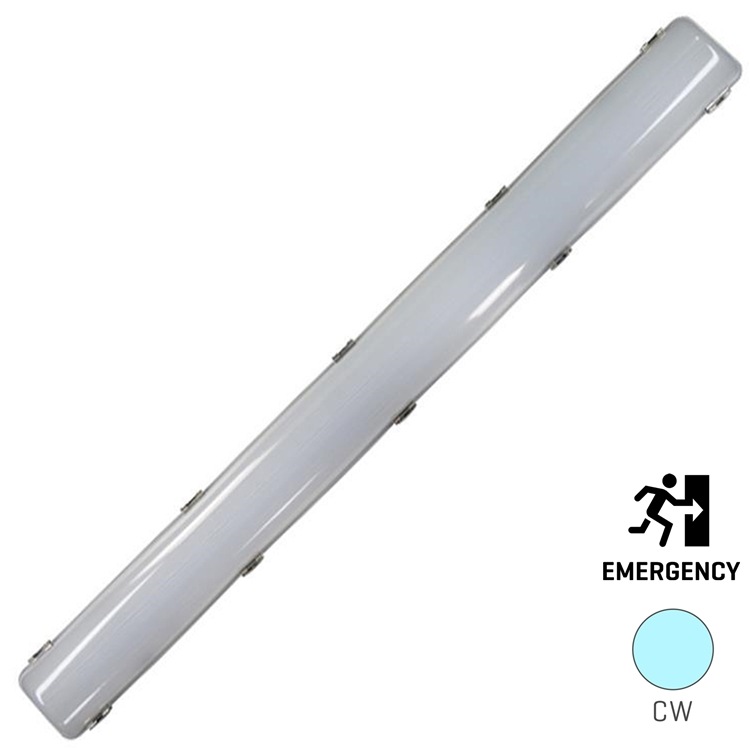

Emergency Maintained LED Batten fitting
All New Voltex LED batten - No more fluro tube replacements, a 7 year warranty*, and substantial energy savings.
- Weatherproof (IP66) Vandal Resistant fittings
- Polycarbonate lens and base - UV stabilised (Material: V-0 Rating)
- High output LG® LED chips
- OSRAM® LED driver (Non Dimmable)
- All fixings and brackets supplied
- Stainless Steel clips
- Ideal for outdoors and washdown bays
- 7 year warranty* (Note: Battery: 12 months warranty)
- Luminous Flux: 3700 lm
- Luminous Flux (Emergency mode): 400 lm
- Luminous Power: 3.554 W
- Luminous Efficacy: 111.96 lm/W
- Emergency Classification: C0- C100; C90- C100
- Operating Temp: -20˚C to +40˚C
- Dimensions: 1160mm (L) x 120mm (W) x 108mm (H)
- Battery Covered by 12 Month Warranty
- L1 -Unswitched / Continuous Active- this charges the internal battery (the green LED indicator will be on).
- - Luminaire will illuminate from battery power (at reduced output level) when L1 active is lost.
- L2 -Switched active - Luminaire will turn on and off when power is applied to this terminal
-
Wiring Note: Can be used as a Non-maintained or Maintained output luminaire by looping either terminal L1 or L2 respectively
Maintained Battery Life | > 90 Minutes (As per AS2293.3) |
Product Code | LW1236M-5K |
Input Voltage | 200-260 VAC 50/60Hz |
Opal diffuser material | UV Stabilized Polycarbonate (PC) Opaque White |
Body material | Polycarbonate (PC) Grey |
Fireproof grade | V-0 |
Input Power (Watts) | 36 |
Clips & Mounting Brackets | 304 Stainless Steel |
Terminal Block | 4 Pole. Screw Terminal: 6mm2 capacity |
Driver Efficiency | >85.1 |
Driver | OSRAM® OPTOTRONIC (Non Dimmable) |
LED Brand | LG® |
LED Type | SMD2835 |
LED Qty (Pcs) | 75 |
CCT - Colour Temperature (Kelvin) | 5000K |
CRI (Colour Rendering Index) | >80 |
Luminous Flux | 397.90 lm |
Luminous Efficacy | up to 105 lm/W |
Power Factor | >0.95 |
Beam Angle | 120° |
IK rating (Impact Resistance) | IK08 (Protection against 5 joule impact) |
IP rating | IP66 |
Warranty | 7 years (Battery: 12 Months) |
Compliance | AS/NZS 60598.2.22 with AS/NZS 60598.1; AS 2293.3; EN 55015 |
Net Weight | 2.4kg |
Product Size | 1160 (L) x 120 (W) x 108 (H) |
Fixing Hole Centre | 770mm |
Maximum Luminaires per circuit (Typical) Type C 16A |
45 |
Operating temperature | -20oC to +40oC |
Emergency Classification | C0- C100; C90- C100 |
