LW1236-5K
In Stock

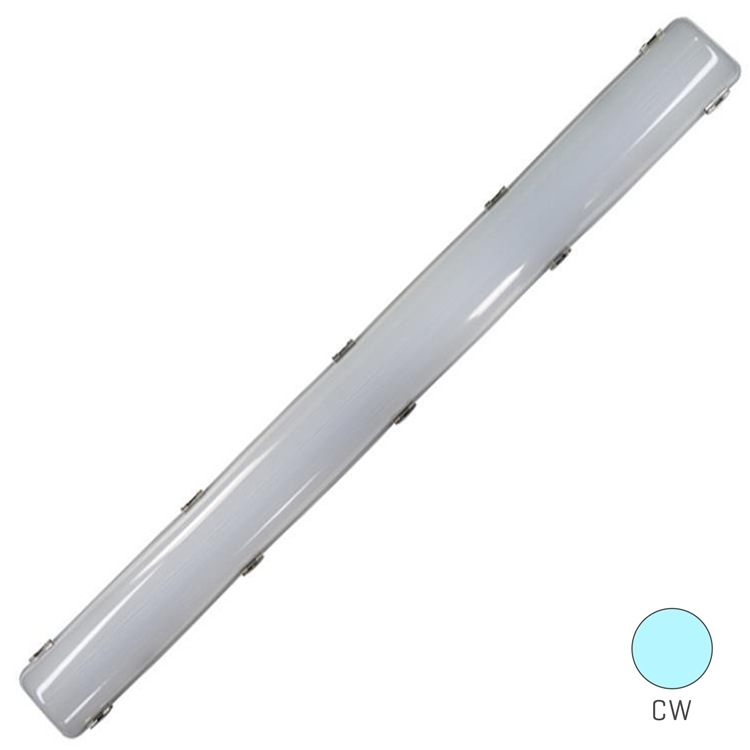

LED 36W Weatherproof IP66 Batten - 1160mm - 5000K



Voltex Lighting7 years warranty


All New Voltex LED batten - No more fluro tube replacements, a 7 year warranty, and substantial energy savings.

  • Weatherproof (IP66) Vandal Resistant fittings
  • Polycarbonate lens and base - UV stabilised (Material: V-0 Rating)
  • High output LG® LED chips
  • OSRAM® LED driver (Non Dimmable)
  • All fixings and brackets supplied
  • Stainless Steel clips (use 8GA x 12mm self tap screws to lock - not supplied)
  • Ideal for outdoors and washdown bays
  • 7 year warranty
  • Lumens: 3700Lm
  • Operating Temp: -20˚C to +40˚C
  • Dimensions: 1160mm (L) x 120mm (W) x 108mm (H)
Product Code LW1236-5K
Input Voltage 200-260 VAC 50/60Hz
Opal diffuser material UV Stabilized Polycarbonate (PC) Opaque White
Body material Polycarbonate (PC) Grey
Fireproof grade V-0
Input Power (Watts) 36
Clips & Mounting Brackets 304 Stainless Steel
Terminal Block 3 Poles Screw Terminal 6mm2 capacity
Driver Efficiency >85.1
Driver OSRAM® OPTOTRONIC (Non Dimmable)
LED Brand LG®
LED Type SMD2835
LED Qty (Pcs)> 75
CCT - Colour Temperature (Kelvin) 5000K
CRI (Colour Rendering Index) >80
Typical Lumens (+/-5%) 3700Lm
Lighting Efficiency up to 105Lm/W
Power Factor >0.95
Beam Angle 120°
IK rating (Input Resistance) IK08 (Protection against 5 joule impact)
IP rating IP66
Warranty 7 years
Certificates ROHS, EN62471, ISO 9001:2008
Net Weight 2.2kg
Product Size 1160mm (L) x 120mm (W) x 108mm (H)
Fixing Hole Centre 770mm
Maximum Luminaires per circuit
(Typical) Type C 16A
48
Operating temperature -20°C to +40°C
Attachment
LED IP66 Battens Instructions
LW1236-5K Spec Sheet
All Voltex Light Fixture IES files (Zip file)
