LW624M-5K
In Stock

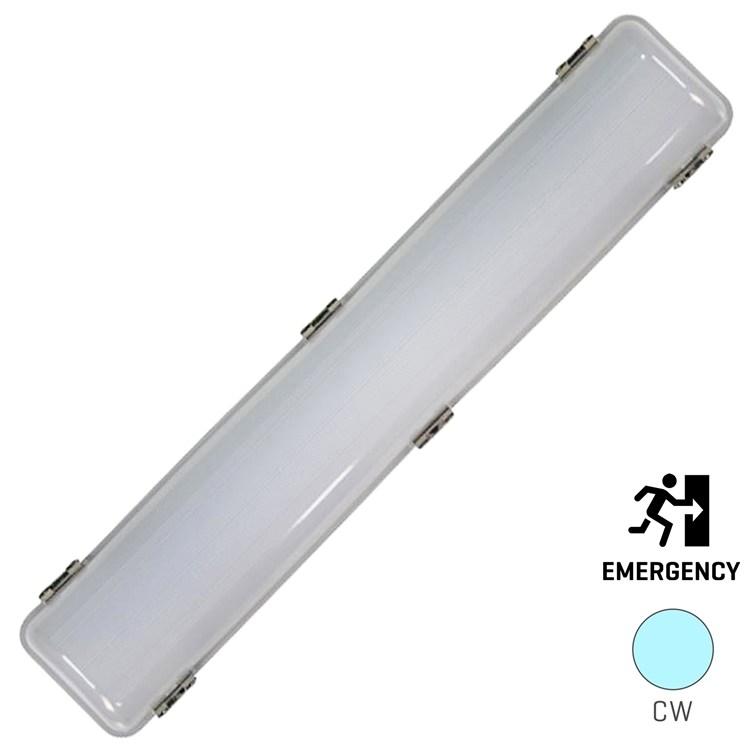

LED 24W Maintained Weatherproof IP66 Batten - 600mm - 5000K

Voltex Lighting7 years warranty


Emergency Maintained LED Batten fitting

All New Voltex LED batten - No more fluro tube replacements, a 7 year warranty*, and substantial energy savings.

  • Weatherproof (IP66) Vandal Resistant fittings
  • Polycarbonate lens and base - UV stabilised (Material: V-0 Rating)
  • High output LG® LED chips
  • OSRAM® LED driver (Non Dimmable)
  • All fixings and brackets supplied
  • Stainless Steel clips
  • Ideal for outdoors and washdown bays
  • 7 year warranty* (Note: Battery: 12 months warranty)
  • Luminous Flux: 2500 lm
  • Luminous Flux (Emergency Mode) 300 lm
  • Luminous Power: 2.459 W
  • Luminous Efficacy: 119.40 lm/W
  • Emergency Classification:  C0- C63; C90- C63
  • Operating Temp: -20˚C to +40˚C
  • Dimensions: 600mm (L) x 120mm (W) x 108mm (H)
  • Battery Covered by 12 Month Warranty
  • L1 -Unswitched / Continuous Active- this charges the internal battery (the green LED indicator will be ON).
  •  - Luminaire will illuminate from battery power (at reduced output level) when L1 active is lost.
  • L2 -Switched active - Luminaire will turn on and off when power is applied to this terminal
  • Wiring Note: Can be used as a Non-maintained or Maintained output luminaire by looping either terminal L1 or L2 respectively
Maintained Battery Life > 90 Minutes (As per AS2293.3)
Product Code LW624M-5K
Input Voltage 200-260 VAC 50/60Hz
Opal diffuser material UV Stabilized Polycarbonate (PC) Opaque White
Body material Polycarbonate (PC) Grey
Fireproof grade V-0
Input Power (Watts) 30
Clips & Mounting Brackets 304 Stainless Steel
Terminal Block 4 Pole. Screw Terminal Capacity: 6mm2 max.
Driver Efficiency >85.1
Driver OSRAM® OPTOTRONIC (Non Dimmable)
LED Brand LG®
LED Type SMD2835
LED Qty (Pcs) 50
CCT - Colour Temperature (Kelvin) 5000K

CRI (Colour Rendering Index)

>80

Luminous Flux 2500 lm
Luminous Flux (Emergency mode) 300 lm
Luminous Efficacy up to 119.40 lm/W
Power Factor >0.95
Beam Angle 120°
IK rating (Impact Resistance) IK08 (Protection against 5 joule impact)
IP rating IP66
Warranty 7 years (Battery: 12 Months)
Compliance AS/NZS 60598.2.22 with AS/NZS 60598.1; AS 2293.3; EN 55015
Net Weight 1.5kg
Product Size 600 (L) x 120 (W) x 108 (H)
Fixing Hole Centre 330mm
Maximum Luminaires per circuit
(Typical) Type C 16A
80
Operating temperature -20oC to +40oC
Emergency Classification C0- C63; C90- C63
Attachment
LED IP66 Emergency Battens Installation Instructions II300617
LW624M-5K Product Data Sheet PDS 300617
All Voltex Light Fixture IES files (Zip file)
