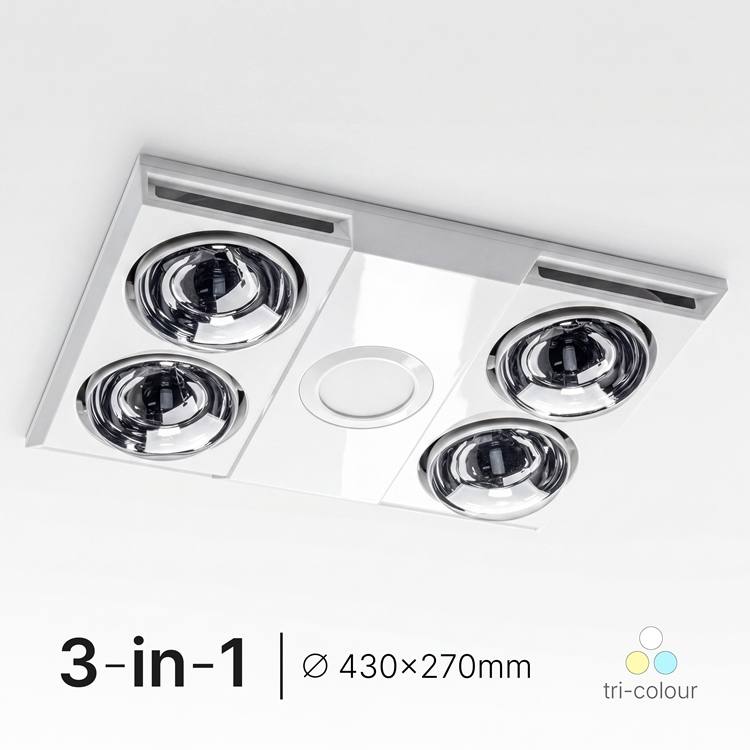

Voltex® 3 in 1 Bathroom Heaters are ideal for bathrooms where you need a quick and easy option for Heat, Ventilation and Light. The tri-colour downlight gives off a powerful 1000lm of light, while the extraction fan has been designed to really work, with an air movements capacity of 371m3/hr (when tested to ISO 5801 standard). Comes with a Voltex 4-gang plate with switches, 3m 120mm flexible ducting, ducting clamps, exhaust vent and plaster screws - everything you need to get the job done.
Improvements
- Stronger air movement (from 300m3/hr --> 370m3/hr, with only a slight increase in noise 49.6dB --> 50.1dB)
- LED light now dimmable.
- Soft dampener has been added to the draft-stopper, to stop rattling sound from cross-winds in the roof.
- Insect mesh has been added to the grill.
- Terminal tunnels have been increased from 3.4mm to 4.2mm diameter.
- Cable clamp area redesigned to give better terminal access.
- Provision for Cable tie outside of terminal housing.
- Increases cable entry hole and knockout for larger hole when needed.
Features
- 3 in 1. Heat, Ventilation and Light
- LED 13 Watt, Tri-colour
- White Finish
- Mounting brackets for easy installation, with plaster screws included to ensure a flush fit to the roof
- 120mm ducted outlet with draft-stopper
- 3 Year Warranty from date of purchase
Supplied with
- Classic 4 Gang Switch, 4 x CSM16 mechs marked Heat (x2), Light & Fan
- 4 x 275W Heat lamps
- 1x intergrated 90mm 13W tri-colour downlight
- 3m 120mm flexible duct, 1x 120mm exhaust vent and 2x Stainless Steel ducting clamps.
Notes:
- Motor speed can NOT be reduced using a speed-controller.
- This product requires a permanent Active to ensure the thermostatic switch is always operational. The switch will activate automatically to turn the exhaust fan on when the internal temperature reaches 90 degrees. If you do not have a hard Active at the unit and don't want to wire one - consider the 2 lamp version here.
-
Max Heat Lamp rating: 275W
Fascia Dimensions | 480 x 360mm (max 25mm projection below ceiling) |
Ceiling Cut-out | 430 x 270mm |
Ceiling Penetration Depth | 200mm |
Fan Duct Diameter Ø | 120mm - 120mm ducting supplied |
Volts | 220-240V AC |
Frequency | 50 |
IP Rating | IPX2 |
dB level | 50.09dB |
Airflow (ISO 5801) | 371m3/h (103 L/Sec) * Measured to ISO 5801 international testing standard. |
Fan Motor Power | 60W |
LED Power | 13W |
Light Colour | 3000K 4200K 6500K |
Light Output | 1000lm (measured at 4200K) |
Heat Lamps | 275W Max |
- Supplied with Classic 4 Gang Switch, 4 x CSM16 mechs marked Heat (x2), Light & Fan
- Supplied with 4 x 275W Heat Lamps
- Supplied with 3m x 120mm Flexible Duct, duct clamps and exhaust vent. NB if using 125mm fittings you will need to purchase 125mm ducting (FD6125) -available separately.
