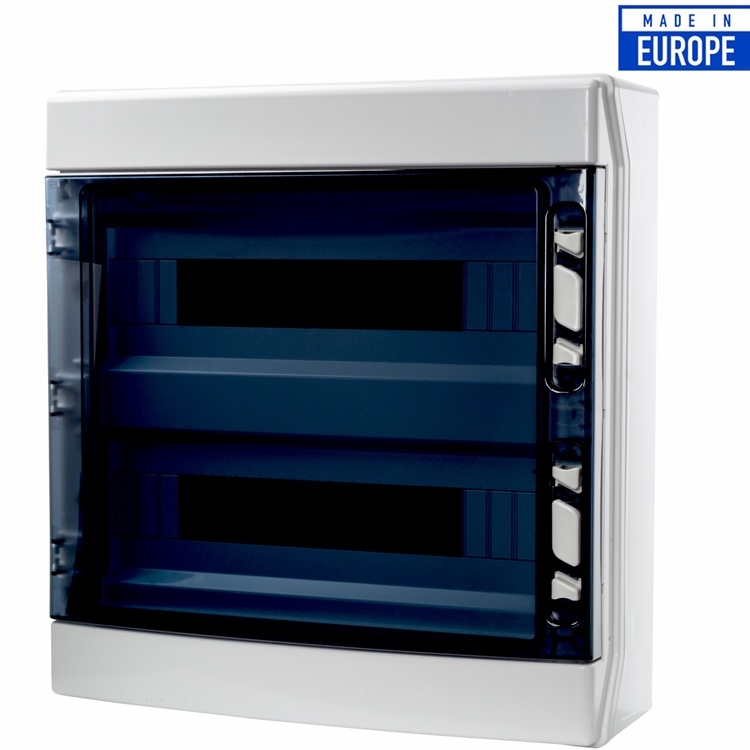

Weatherproof IP65 Switchboard - 36 module

Will Ship on Monday - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.

VOLTEX Switchgear Lifetime Warranty Made in Europe

These IP65 distribution boxes are made from halogen free long-lasting thermoplastic material of the highest quality, with excellent UV resistance. They have a large internal space for wiring and modular capacity from 6 up to 36 modules. Designed for internal and external use where a high degree of protection is required.

  • Body is made from ABS material
  • Protection degree: IP65
  • Impact resistance: IK08
  • Resistance to glow wire: 650ºC
  • Ball pressure test: 70ºC
  • Range of temperature under normal conditions: -25ºC / +40ºC
  • Maximum operating voltage: 1000VAC / 1500VDC
  • Current Rating: 125A
  • Class II

Materials (halogen free):

  • Case and frame opaque in ABS RAL 7035
  • Smoked transparent window in polycarbonate


  • Reinforced strip which gives better rigidity
  • Double height case which offer more internal space for wiring and fitting switchgear
  • Pre-moulded cable entries for M40, M32, M25 & M20
  • Case grooves for mounting plates and fixing accessories
  • Sealed screws in four points for easy installation
  • Earth and neutral bars with double height available
  • Removable chassis for models with two or more rows



Degree of Protection IP65
Resistance to impact IK08
Auto-extinguishing degree HB (UL94)
Test of resistance to glow wire in the base 650ºC
Ball pressure test 70ºC
Room temperature range -25ºC / +40ºC
Maximum operating voltage 1000VAC / 1500VDC
Halogen-free materials ABS (Acrylonitrile Butadiene Styrene)
Double insulation Class II

WeatherproofCase Product Data Sheet PDS02072019
