C66P550
In Stock

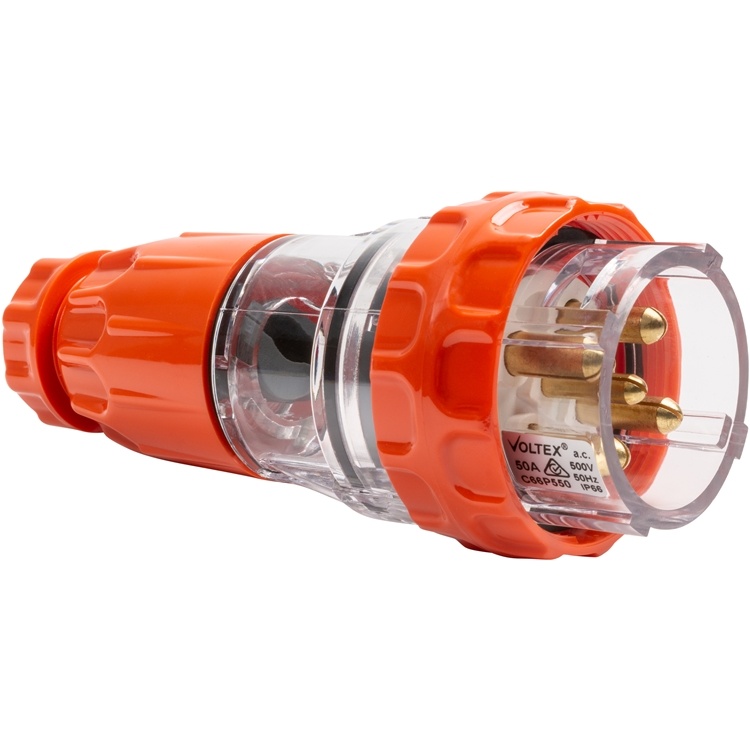

Straight Plug - IP66 500V 50A - 5 Round Pins
Will Ship on Monday - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.
Voltex Industrial switchgear has an extensive range of IP66 plugs, either straight or angle. Made with high impact resistant materials, these plugs also have a transparent polycarbonate body in their design that allows instant examination of connections. They can be unscrewed and tightened with ease, even when hands are gloved.
- Voltage: 500V
- Amp: 50A
- Pin No: 5 Round Solid Brass Pins
- IP Rating: 66
- Industrial strength power plugs for dusty or wet conditions
- Complies with Australian Standards (AS/NZS 3123)
- Extensive range of plugs are available in straight or angled for best access
- Polycarbonate body that is extremely durable
- Transparent areas allow examination of connections
- Max entry cable gland diameter 28.3mm
- Maximum conductor 16mm2 (twin brass screw tunnel 6mm diameter)
- Body screws made of stainless steel for corrosion resistance
- Remove the lower half cable clamp insert for larger sheath sizes (12mm to 26mm OD)
Attachment
C66P Product Data Sheet PDS050719
