SS2
In Stock

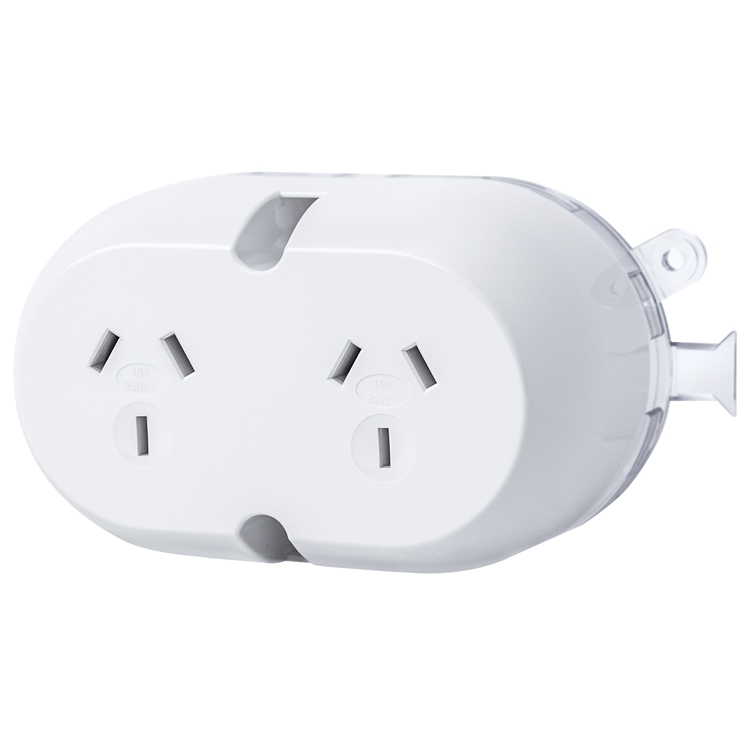

Double Plug Base 10A

Will Ship on Thursday - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.
VOLTEX LOGOlifetime warranty Comply with AS/NZS 3112

These back-wired Surface Sockets have a high impact white plastic body and are approved to all relevant Australian Standards. Covered by the Voltex Lifetime warranty. The SS2 has four large terminals on the backing plate for ease of wiring. Earth and Active terminals are color-coded, and the Loop terminal is barred for normal applications. A clear mounting bracket is also supplied as standard, making installation easy and providing a firm, secure base which the white body will clip into.

Suitable for use with:

  • Downlights
  • Fans
  • Range hoods
  • all other appliances with 3 pin plug leads.

  • Volts: 250V
  • Amp: 10A
  • Pin No: 3 Flat Pin (x2)
  • Dimensions: 116mm (W) x 70mm (D) x 56mm (H)
  • Terminals: 4 Terminals which accommodate 4 x 2.5mm² cables
  • Mounting Centres: 122mm
  • Mounting: Direct
  • Approval No: V1442
Attachment
Plug Base SS1/SS2 Product Data Sheet
