In Stock

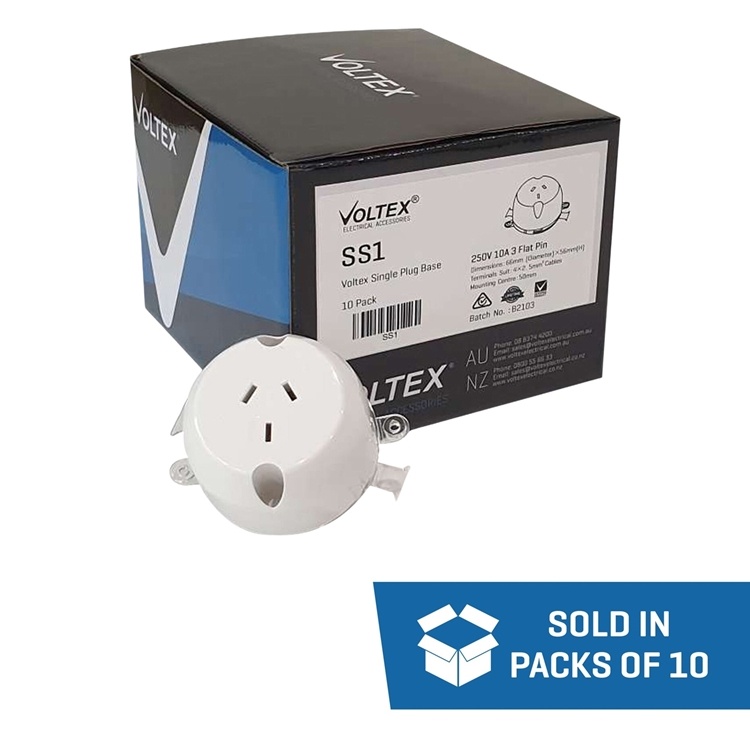

10 PACK - Single Plug Base 10A

VOLTEX LOGOlifetime warranty

Single Plug Base with Clear Mounting Bracket

These back-wired Surface Sockets have a high impact white plastic body and are approved to all relevant Australian Standards. Covered by the Voltex Lifetime warranty. The SS1 has four large terminals on an all-white backing plate, for excellent visibility and ease of wiring.

Earth and Active terminals are clearly color-coded, and the Loop terminal is barred for normal applications.

The clear mounting bracket is standard, making installation easy and providing a firm, secure base which the white body clips into.

Suitable for use with:

  • Downlights
  • Fans
  • Range hoods
  • all other appliances with 3 pin plug leads.
Volts 250V
Amp 10A
Pin No. 3 Flat Pin
Dimensions - Single 66mm ( Diameter) 56mm (H)
Terminals 4 Terminals which accommodate 4 x 2.5mm2 cables
Mounting Centres 50mm
Mounting Direct
Plug Base SS1/SS2 Product Data Sheet
